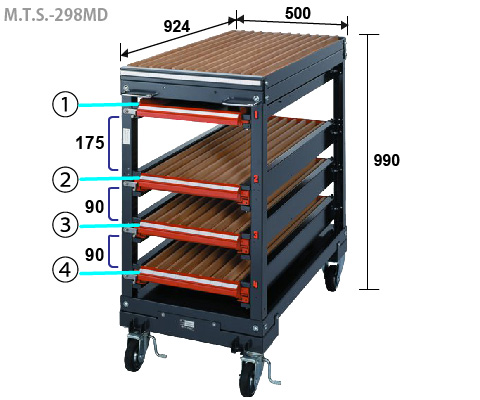

Multi-tool Stocker M.T.S.-298MD For Modular Tools
unit:mm
Features & Specification
- Compact and movable close to the machine
- Shelves arranged for ease of tool setup
- Easy to organized tools and easy to handle long tools
- Capable of storing tools and jigs for setup of press brake tooling
- Fitted with safety stoppers to prevent tools
- Provided casters for moving and locking anchor
- Specification
- Ordering Information
| Shelf # | Tool Type | Shelf Height | Shelf Rows | |
|---|---|---|---|---|
| The number of Shelves | Top | Modular Punches （Dies） | - | 11 |
| ① | Tools | - | - | |
| ② | Modular Punches （Dies） | 175 | 8 | |
| ③ | Modular Dies （Punches） | 90 | 8 | |
| ④ | Modular Dies （Punches） | 90 | 8 | |
| Total | 35 | |||
| Shelf Length | 900mm | |||
| Outline Size | W500mm×D924mm×H990mm | |||
| Loading Capacity | 280kg | |||
| Dry Mass | 140kg | |||
| Item | Code. No. |
| M.T.S.298MD | 957000 |
Optional
| Item | Contents | Code. No. |
| Side Table | It is useful for putting the instructions or the drawings on this. | 955100 |
| Side Cover | This protects tooling from dusts. | 955200 |
＊Caution：Please use fixture bolts except when moving the stocker.
※Caution for Shelf Rows:
＊Gooseneck Punches：2 rows for 1 pc
＊Modular Dies：MAX V=25
