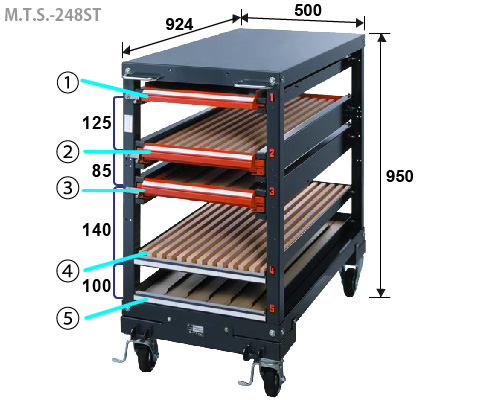

Multi-tool Stocker M.T.S.-248ST For Standard Tools
unit:mm
Features & Specification
- Compact and movable close to the machine
- Shelves arranged for ease of tool setup
- Easy to organized tools and easy to handle long tools
- Capable of storing tools and jigs for setup of press brake tooling
- Fitted with safety stoppers to prevent tools
- Provided casters for moving and locking anchor
- Specification
- Ordering Information
| Shelf # | Tool Type | Shelf Height | Shelf Rows | |
| The number of shelves | ① | Tools | - | - |
| ② | Punches （AFH） | 125 | 10 | |
| ③ | 1V Dies /2V Dies | 85 | 5 | |
| ④ | Punches （AFH） | 140 | 12 | |
| ⑤ | 1V Dies / 2V Dies | 100 | 6 | |
| Total | 33 | |||
| Shelf Length | 900mm | |||
| Outline Size | W500mm×D924mm×H950mm | |||
| Loading Capacity | 280kg | |||
| Dry Mass | 120kg | |||
| Item | Code. No. |
| M.T.S.248ST | 955000 |
Optional
| Item | Contents | Code. No. |
| 1 Top Table ＊1 | Shelf Rows Punches：6 rows Dies：4 rows This improves setup work by placing the frequently used tooling. |
955300 |
| 2 Side Table | It is useful for putting the instructions or the drawings on this. | 955100 |
| 3 Side Cover | This protects tooling from dusts. | 955200 |
| 1+2+3 | - | 955400 |
＊Caution：Please use fixture bolts except when moving the stocker.
＊Caution for Shelf Rows:
＊Gooseneck Punches：2 rows for 1 pc
＊Sect. 1V Dies（MAX V=25）：1 row for 2 pcs
