Amada Long-life die ALD Series Tool
Quick Change 2V Die Spec.

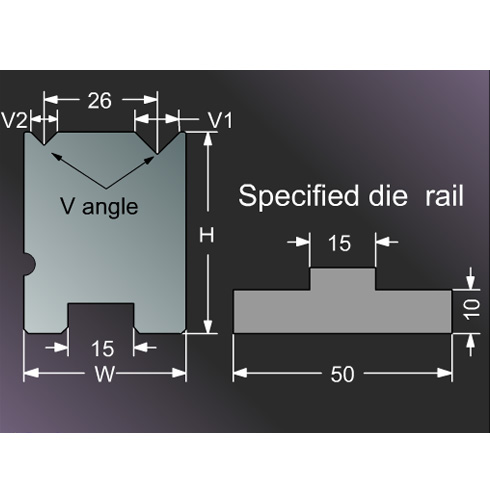

◆ Die no. 5019 to 5079 sectionalized 2V die L , S and sectionalized size
| Tool No. | 5019 | 5079 | 5029 | 5039 | 5049 | 5059 | 5069 |
| V Width | 4 | 5 | 6 | 8 | 14 | 12 | 16 |
| 7 | 9 | 10 | 12 | 18 | 20 | 25 | |
| W mm | 34.5 | 36 | 37 | 39 | 45 | 45.5 | 50 |
| V Angle & H | 90°H=46 , 88°H=45.5 | 88°H=45.5 | |||||
* L：835mm M：415mm S：415mm
Sect.：10, 15, 20, 40, 50, 100, 200, 400 Total:835mm
Amada Die Series Comparison
| Amada Dies Series | Original Die | A.L.D. Die |
| Shape | same | |
| Accuracy | - | improved |
| Toughness | - | improved |
| Surface Hardness | HRC47±2 | HRC55 |
| Allowable Tonnage | same | |
| Specified die Rail (No.300)Rail Length | L：835mm S：415mm |
Caution
Application of hot rolled material on ALD 2V die needs the care for
the scales, which comes out from the surface.
AX die specified for stainless and heavy gauge is recommended
to use for hot rolled steel.
