  3. Deep Bend Punch Holder

Deep Bend Punch Holder

Heavy Gauge AX1V Die
Heavy Gauge AX1V DieHeavy Gauge AX1V DieHeavy Gauge AX1V DieHeavy Gauge AX1V Die

Specification

Holder Length mm 200
Holder Height mm 220
Allowable Tonnage 350kN/m
Max. Material Thickness
mm
SPCC: 3.2 (above V=20)
SUS: 2.0 (above V=12)
Angle Adjustment Wedge Adjustment (With or Without)
Tool Weight 18kg
Applicable Machine ZII Machine

* Remove the distance pieces and install the deep bend punch holder

* Machine open height must be more than 370mm(ZII)

* Die holder height is 39mm type and die height is less than 26mm to be used.

Code

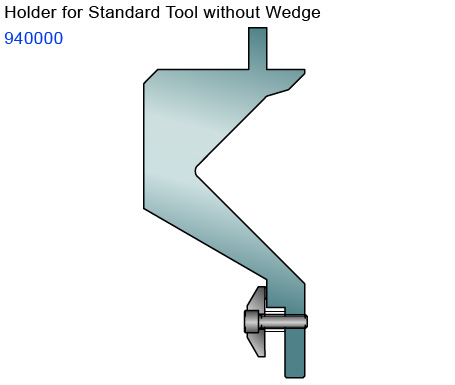

Holder for Standard Tool without Wedge 940000
Holder for Standard Tool with Wedge 941000
Holder for One-Touch Tool without Wedge W94000
Holder for One-Touch Tool with Wedge W94100

Tool Order as Special

Special Punch
H=25mm
10~299 mm Contact Amada
for Any Enquiry !
300~415 mm
416~699 mm
700~835 mm
