Narrow Distance Piece

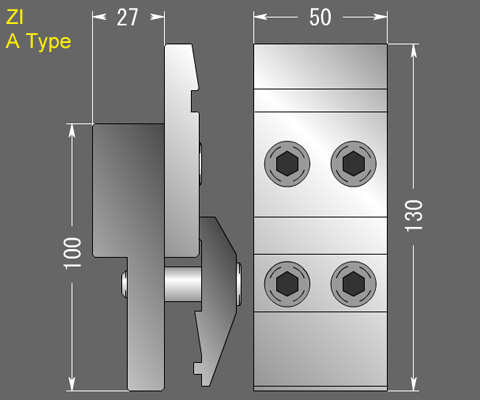

ZI A
ZI AZI BZII B

Specifications

  • ZI and ZII

ZI Spec.

Holder Width 50mm
Holder Height 100mm
Proof Pressure 1000kN/m
Machine All Type

* Clamping shape have two types:one touch shape and standard type shape. Left shows one-touch type. * When B type is installed directly on the top beam, machine type has to be ZI type.



ZII Spec.

Holder Width 50mm
Holder Height 120mm
Proof Pressure 1000kN/m
Machine Zll Type Machine

*Clamping shape have two types: One touch shape and standard type shape. Left show standard type.

A type is installed under one-touch punch holder.
B type is installed directly on the top beam and under the distance piece.
