Short Distance Piece

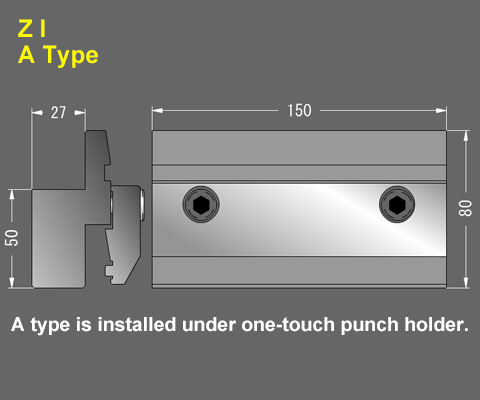

ZI A
ZI AZI BZII B

Specifications

  • ZI and ZII

ZI Spec.

Holder Height 50mm
Holder Length 150mm
Proof Pressure 1000kN/m
Machine All Model

* Clamping shape have two types:one touch shape and standard type shape. (Left shows one touch type)
* When B type is installed directly on the top beam, machine type has to be ZI type.



ZII Spec.

Holder Height 50mm
Holder Length 150mm
Proof Pressure 1000kN/m
Machine Zll Machine

*Clamping shape have two types: One touch shape and standard type shape.
