Hydaraulic 1V Die Holder

Items			Spec.
Die Clamp method			Hydaraulic Driven Type
Applicable Die			Amada Standard Sectionalized 1V Die and Die with 14mm width
Holder Length	Machine Table Length	L1250	1250mm × 1 = 1250mm
		L2000	2000mm × 1 = 2000mm
		L2500	1250mm × 2 = 2500mm
		L3000	1500mm × 2 = 3000mm
		L4000	2000mm × 2 = 4000mm
Holder Weight	Machine Table Length	L1250	26.0kg × 1 = 26.0kg
		L2000	41.0kg × 1 = 41.0kg
		L2500	26.0kg × 2 = 52.0kg
		L3000	31.0kg × 2 = 62.0kg
		L4000	41.0kg × 2 = 82.0kg
Holder Height			H=51.5mm (From The Upper Surface of The Table）
Tool Clamp Force *			6.7kN (670kgf) (Outlet Pressure 24.5MPa/h)

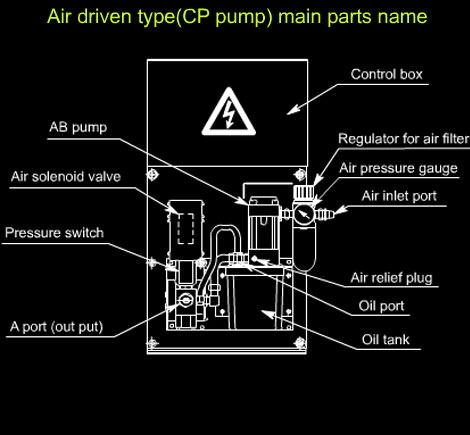

Hydaraulic Working Pressure			24.5MPa (250kgf/cm2）
Tool Allowance			1000 kN/m

Holder Length: Machine TableLength 1.2m～2.0m (Standard)	1 set: 1pcs
Holder Length: 2.5m more	1 set: 2pcs

*: Clamping force is theoretical calculated figure per clamp plate 125mm long.
