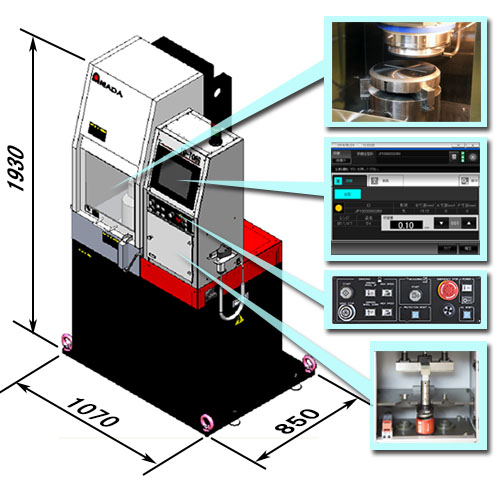

- ID-TOGU Specifications
ID-TOGU
Specifications
Mass of Machine | 700kg |
---|---|
Power Supply | Three(3)-phase, 200V at ( 50/60Hz) |
Power Requirements | 2.5kVA |
Air Consumption | 600L/min. , Max.200L/1 cycle *1 |
Standard Grinding Wheel | Made of CBN and 135mm in diameter (conductive) |
Max./Min. Tool Dia. | φ1.51mm(Guaranteed)/ φ160mm |
Max./Min. Tool Height. | 150mm*2 / chuck pawl height |
Vertical Trave Distance | 240mm |
Feed Speed | 1/2",1-1/4",2":0.06mm/min 3-1/2”,4-1/2” :0.03mm/min |
Pump Discharge Amounr | 20L/min , 25L/min(50/60Hz) |
Min. Readable Dimension | Min. : 0.02mm |
Measurable Range | Tool Height : 28-209mm |
*1 One cycle is the amount of air required for positioning the grinding wheel when the
grinding wheel is started at 10mm above the tool top surface.
*2 This is when using shear angle jig for Est(41/2”9 Punch Body.
*Specification/appearance/device may change without prior notice for improvement.
