APH Long Punch Body

  • Ast 1/2"
  • Bst 1 1/4"
  • Cst 2"
  • Dst 3 1/2"
  • Est 4 1/2"

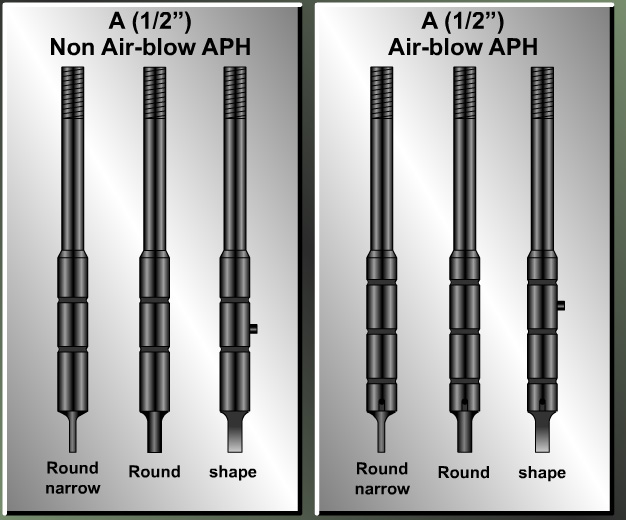

Long Ast 1/2" APH

Ast

  Non Air-Blow Air-Blow
Round narrow (φ1.6 to φ 3.2) 41X020 41H020
Round ( φ3.2 to φ12.7) 41X030 41H030
Shape ( diagonal 12.7mm) 42X020 42H020

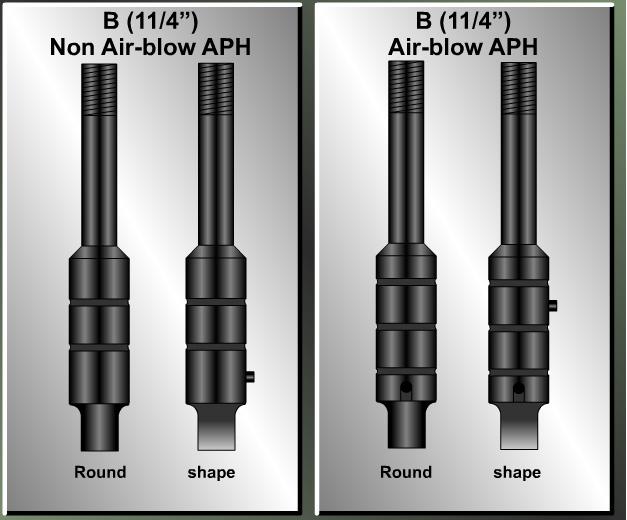

APH Long Punch Body

Bst

  Non Air-Blow Code
Round ( φ12.8 to φ31.7) 41X040
Shape ( diagonal 31.7mm) 42X040
  Air-Blow Code
Round ( φ12.8 to φ30.0) 41H040
Shape ( diagonal 30.0mm) 42H040

APH Long Punch Body

Cst

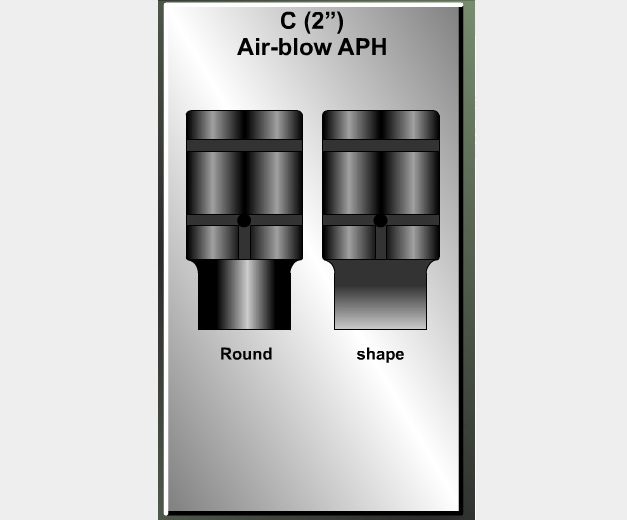

  Air-Blow
Code
Round ( φ30.1 to φ47.0) 41H060
Shape ( diagonal 47.0mm) 42H060

APH Long Punch Body

Dst

  Non Air-Blow Tip type
Code

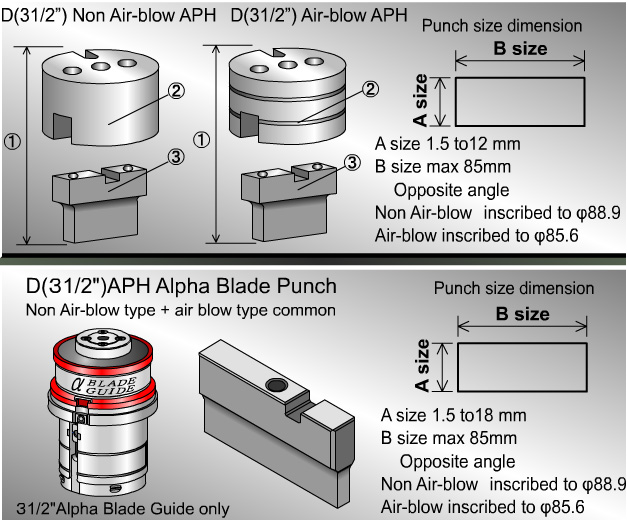

①Punch Body assembly 72X280
②Punch Holder 721380
③APH Punch Tip 42X280
  Air-Blow Tip Type
Code
①Punch Body assembly 72H280
②Punch Holder 72F380
③APH Punch Tip 42X280
  Code
APH Alpha Blade Punch 42X480

APH Long Punch Body

Est

  Non Air-Blow Tip Type Code

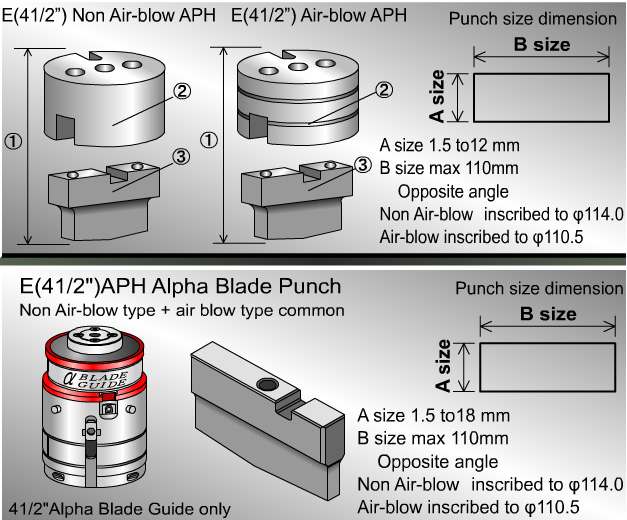

①Punch Body assembly 72X290
②Punch Holder 721390
③APH Punch Tip 42X290
  Air-Blow Tip Type
Code
①Punch Body assembly 72H290
②Punch Holder 72F390
③APH Punch Tip 42X290
  Code
APH Alpha Blade Punch 42X490
