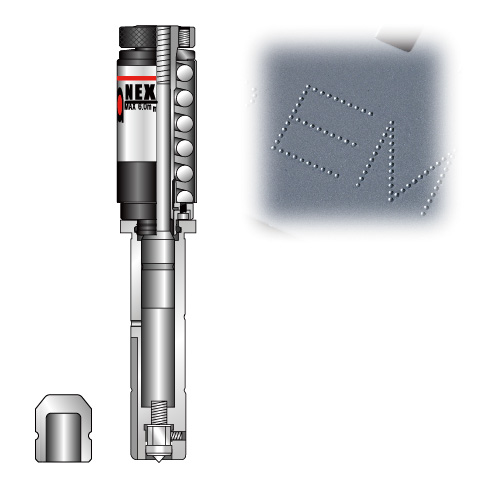

High Speed Marking Tool

High Speed Marking Tooling

Features & Specification

  • Dot marking can be performed on EM/AE by utilizing high speed capacity.
  • AP100 availability enables flexible marking including drawing and letters.
  • Air-blow type enables intensive hit counts.

Specification

Tool Type NCT Long Ast 1/2” Air-blow
Material Thickness Nonadjustable Type  Max. thickness : 6.0mm
Material Mild Steel ・ Stainless ・ Aluminum
Form Direction Downward (Mark on punch side)
Punch Tip Angle : 90° / Depth is adjustable.
Auto Program Applicable to AP100



Reference Hit rate (Stroke=1.4mm Pitch=0.5mm)

EM2510NT 1800 min-1 { hpm }
