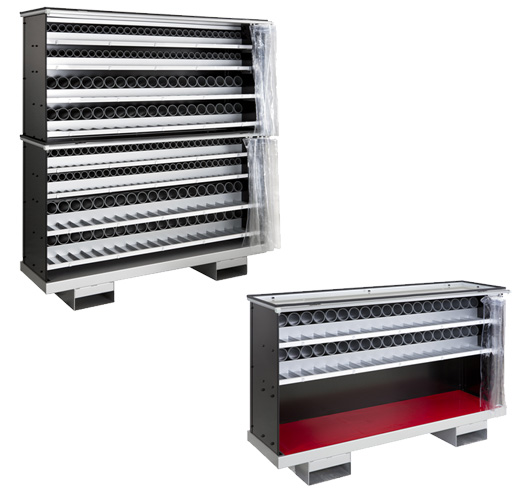

Shelf No. |
Size |
Punch No. to store |
Die No. to store |
Type A |
3~4 |
Ast |
31 × 2 =62 |
31 × 2 × 3 = 186 |
1~2 |
Bst |
20 × 2 = 40 |
20 × 2 × 3 = 120 |
Outline Size |
W1230mm × D350mm × H780mm |
Dry Mass |
92kg |
|
Shelf No. |
Size |
Punch No. to store |
Die No. to store |
Type B |
2~3 |
Bst |
20 × 2 =40 |
20 × 2 × 3 = 120 |
1 |
Cst~Est |
1 shelf free location |
Outline Size |
W1230mm × D340mm × H780mm |
Dry Mass |
80kg |
|
Shelf No. |
Size |
Punch No. to store |
Die No. to store |
Type C |
3~4 |
Ast |
31 × 2 =62 |
31 × 2 × 3 = 186 |
1~2 |
Bst |
20 × 2 = 40 |
20 × 2 × 3 = 120 |
Outline Ssize |
W1230mm × D350mm × H620mm |
Dry Mass |
72kg |
1 Don't move the cabinet while the tooling are stored. For removal of the cabinet relocation take out all tools from the shelves.
2 Use fork lift for cabinet relocation.
The hooks on the top are for position fixture and not for the lifting !
Don't lift with these hooks.
3 Select the flat floor for the location of the cabinet.
