FEL Data
Dies
4V Dies
4V Dies
FELNo.
Product
Angle
V Width
SH. R
Die Edge Distance
Height

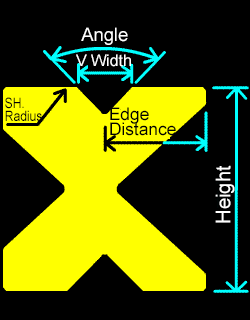

1
129016
4V
Dies
88
16
0.5
30
60

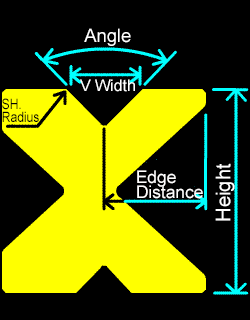

2
129022
88
22
0.5
30
60

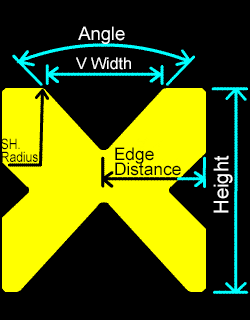

3
129035
85
35
2.0
30
60

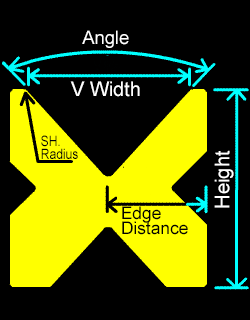

4
129050
85
50
2.0
30
60
