Super Multi
This FEL data is not for V-bending. ( Value "D" can not be calculated.)
Therefore, please download the data after reading the following notice carefully.
>Use "Direct Data" mode. ("3D Data"/"Shape Data"/"Angle Data" are Not Available.)
*Direct Data: Input values "L" and "D" on "Run Display" or "Prog Display" through from "Bend Process Display/Tool Select Display"
| Not possible to calculate D value (Except V bend type tool) | ||||
| Radius Bend | 3U Die | Offset Tool | Hemming | Wing Bend |
 |
 |
 |
 |
 |
The following data is contained.
| FELNo. | Product | Notes | Image |
|---|---|---|---|

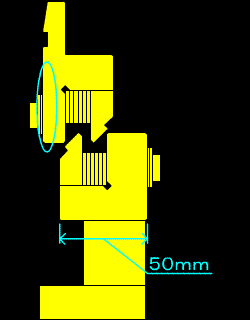

| 00101 | Offset Tool | This item has been discontinued since August 2006. Differences from Super Multi II 1.Punch has no front step. 2.The width of the die main body is 50mm. |
 |
