AFH Punches (H=120 Angle 86°88°90°30°)

Download

The following data is contained.

  FELNo. Product Angle Radius CATNo. Image

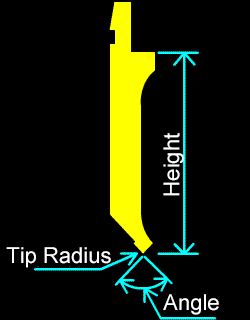

1 904021 Standard
H=120
86 0.2 A04021
A04022
A04821
A04921
2 904061 86 0.6 A04061
A04062
A04861
A04961
3 904051 86 1.5



4 904031 86 3



5 904028 88 0.2 B04021
B04521
B04722
B04821
B04921
6 904068 88 0.6 B04061
B04561
B04762
B04861
B04961
7 916021 90 0.2 A16021
A16022
A16821
A16921

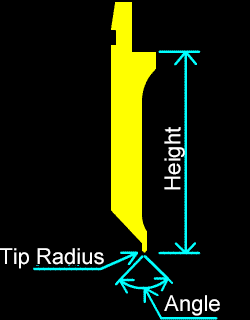

8 905021 Burring
H=120
86 0.2 A05021
A05022
A05821
A05921
9 905061 86 0.6 A05061
A05062
A05861
A05961
10 905051 86 1.5



11 917021 90 0.2 A17021
A17022
A17821
A17921
12 923021 Sash
H=120
86 0.2 A23021
A23521
A23821
A23921
13 925061 86 0.6 A23061
A23561
A23861
A23961
14 923031 86 3 R23031
R23531
R23831
R23931
15 923028 88 0.2 B23021
B23521
B23722
B23821
B23921
16 923068 88 0.6 B23061
B23561
B23762
B23861
B23961
17 925021 90 0.2 A25021
A25521
A25722
A25821
A25921

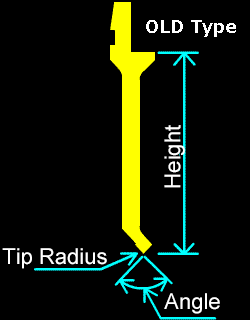

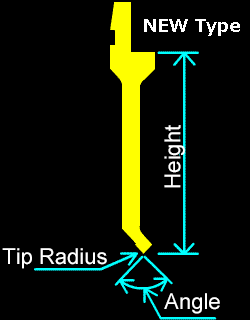

18 920021 Sash
H=120
86 0.2 A20021
A20022
A20821
A20921
19 920061 86 0.6 A20061
A20062
A20861
A20961
20 920028 88 0.2 B20021
B20521
B20722
B20821
B20921
21 920068 88 0.6 B20061
B20561
B20762
B20861
B20961
22 921021 90 0.2 A21021
A21022
A21821
A21921

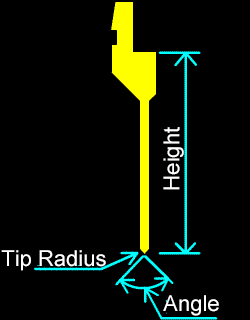

23 919021 Sword
H=120
86 0.2 A19021
A19022
A19821
A19921
24 919061 86 0.6 A19061
A19062
A19861
A19961
25 919051 86 1.5



26 919031 86 3



27 919028 88 0.2 B19021
B19521
B19722
B19821
B19921
28 919068 88 0.6 B19061
B19561
B19762
B19861
B19961
29 918021 90 0.2 A18021
A18022
A18821
A18921

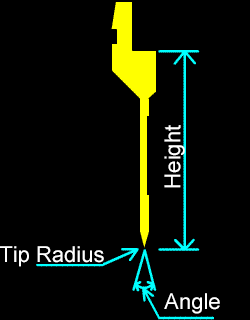

30 913021 Acute
H=120
30 0.2 A13021
A13022
A13821
A13921
31 913061 30 0.6 A13061
A13062
A13861
A13961

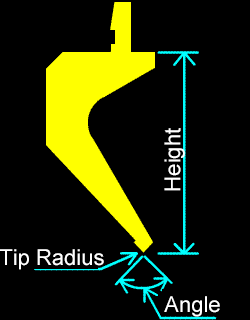

32 947021 Gooseneck
(Edge Width 9mm)
H=120
86 0.2 A47021
A47022
A47821
A47921
33 947061 86 0.6 A47061
A47062
A47861
A47961
34 947051 86 1.5



35 947031 86 3 A47031
A47531
A47732
A47831
A47931
36 947028 88 0.2 B47021
B47521
B47722
B47821
B47921
37 947068 88 0.6 B47061
B47561
B47762
B47861
B47961
38 948021 90 0.2 A48021
A48022
A48821
A48921

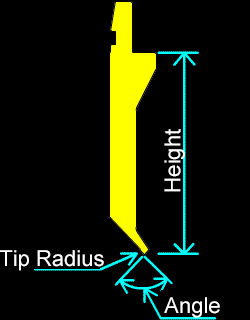

39 906021 No.117
H=120
86 0.2

A27021
A27521
A27722
A27921
A27821

40 906061 86 0.6 A27061
A27561
A27762
A27961
A27861
41 915021 90 0.2 A26021
A26521
A26722
A26921
A26821

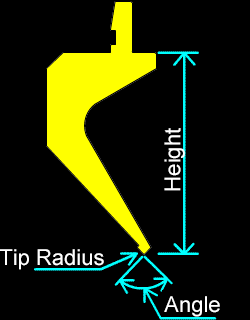

42 953021 Gooseneck
(Edge Width 6mm)
H=120
86 0.2

A46021
A46521
A46722
A46821
A46921

43 953061 86 0.6 A46061
A46561
A46762
A46861
A46961

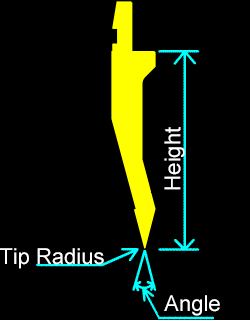

44 930061 Hemming
H=120
30 0.6 A30061
A30561
A30762
A30861
A30961
