Amada Long-life die ALD Series Tool
STD 2V Die Spec.

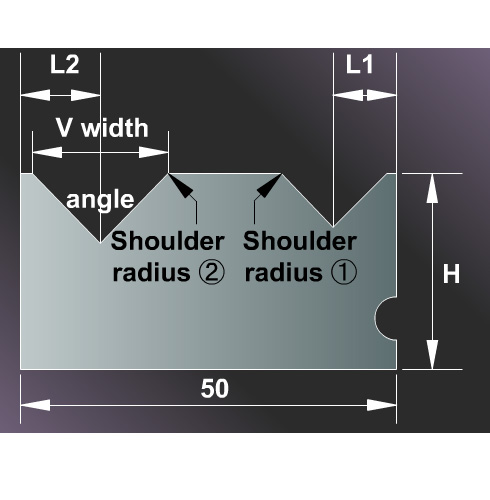

Die no. 121 to 127 2V die L size and S size
Die No. | V Width | Angle & Height |
L1 | L2 | SR1 | SR2 | Allowable Tonnage (kN/m) |
121 | 4 X 7 | 90° H=26 88 H=25.5 |
3.5 | 5 | 0.4 | 0.4 | 600 |
122 | 5 X 9 | 4 | 6 | 0.6 | 650 | ||
123 | 6 X 10 | 4.5 | 6.5 | 0.6 | 700 | ||
124 | 8 X 12 | 5.5 | 7.5 | 0.5 | 0.8 | 800 | |
125 | 14 X 18 | 88 H=25.5 | 8.5 | 10.5 | 0.5 | 1000 | |
126 | 12 X 20 | 7.5 | 12 | 0.5 | 1000 | ||
127 | 16 X 25 | 9.5 | 14.5 | 0.8 | 0.8 | 700 |
Amada Die Series Comparison
Amada Dies Series | Original Die | A.L.D. Die |
Shape | same | |
Accuracy | - | Improved |
Toughness | - | Improved |
Surface Hardness | HRC47±2 | HRC55 |
Allowable Tonnage | same |
Caution: Application of hot rolled material on ALD 2V die needs the care for
the scales, which comes out from the surface.
AX die specified for stainless and heavy gauge is recommended
to use for hot rolled steel.
