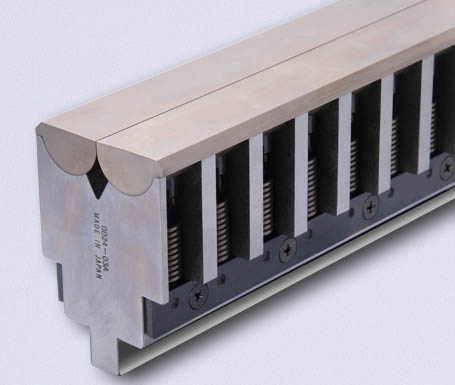

Wing Bend WB650SA

Checkered Steel Plate, Tapered Edge, Short Flange
-->
Specification
  WB650SA
V Width   mm Equal to V30
Thickness
mm
Mild Steel 1.6~6.0
Stainless Steel 1.5~4.5
Aluminum 2.0~6.0
Min. Angle 80°
Tool Length   mm 50,100,200,500
Tool Width    mm 100
Tool Height   mm 100
Allowable Tonnage 1000kN/m
Holder FEAT AFH Die Holder attachable
Reversible 1V Die Holder attachable
Special Die Rail Not attachable

*When bending 6.0mm thick plate with WB650SA, please use R1.0 or less punches. If punch is more than R1.0, it may exceed allowable tonnage.

*Cracks may occur on bending part or outer R depending on materials.

*Please operate with direct mode if machine has NT control.

*Bending Elongation Value of Wing Bend is different from of V Bending slightly. Actual bending check is required. (Please refer to “Reference Bending Data” about reference data.)

*Black coating layer will peel off from outer shoulder radius first because of the characteristic.
