Wing Bend WB650SA Reference Bending Data 1

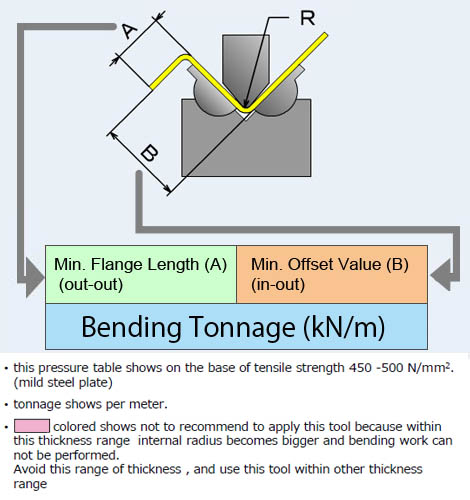

*1 This chart is based up on the tensile strength as 450 to 500 N /mm2(Punch : No.4 88° R0.2)
*2 Chart shows required tonnage per meter.
*3 Bending Tonnage / Min. Flange Length / Min. Offset Value are for usage of punch with 0.2R.
*4 There is a difference of the flange length & min. offset value between reference value and actual value.

Tonnage Chart	Unit: kN/m

Tooling type		WB650SA
Min. flange length A （ｍｍ）		14.0＋bend allowance
Min. return length B (mm)		32.0＋bend allowance
Punch radius size		R0.2	R1	R3	R5	R10
Thickness （mm）	0.5	100	100	100	100	220
	0.8	100	100	110	130	230
	1.0	110	120	120	140	250
	1.2	110	120	120	150	270
	1.6	110	120	130	160	280
	2.0	120	130	140	160	360
	2.3	140	140	150	190	390
	2.6	180	190	200	240	510
	3.2	250	370	280	310	-
	4.0	410	430	440	510	-
	4.5	500	530	540	660	-
	6.0	970	1000	-	-	-
