Contouring Tool

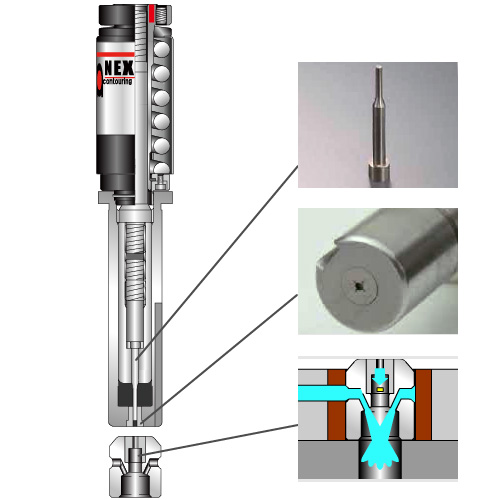

Contouring tool

This tool satisfies higher hit rate performance.

  • This contouring tool has been improved to be high speed, high hit rate and precision nibbling at low cost.
Punch
  • Air blow system lubricates and cools down the slide area and punch
  • Replaceable tip type of APH or carbide for longer life
  • Surface coated guide for hard wearing
  • One side 0.01mm tighter clearance protects punch break by off-center load.
Die
  • Slug pulling protection by vacuum die
  • Press-insertion type button die of APH or carbide
