Contouring Tool

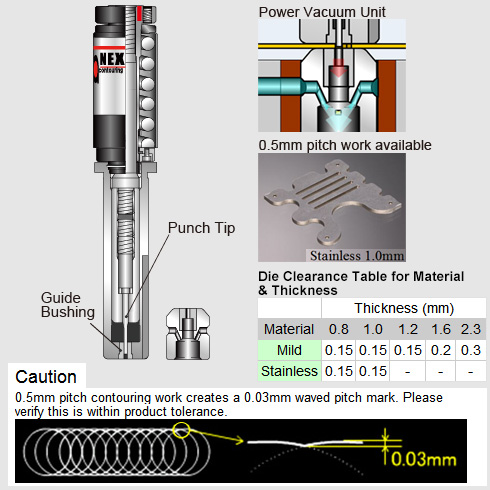

Specification
Tool Type | NCT Thick |
Tool Size | Ast:1/2” |
Punch Tip Size | φ2.0 (recommended size) |
Applicable Die | Power Vacuum |
Punch Tip Grade | Coating / Carbide |
Die Tip Grade | SKH / Carbide |
Punch Tip Grade | Applicable Material & Max. Thickness |
Coating | Mild Steel: 1.6mm / Stainless:1.0mm Aluminum: NA |
Carbide | Mild Steel: 2.3mm Stainless/Aluminum: NA |
1.Appropriate clearance for punch & die is in left table. Decide the clearance according to the table. In case of CL0.15~CL0.2, Ticn Coating punch tip or carbide punch tip. In case of CL0.3, carbide punch tip and carbide die assy.
2.Use this contouring tool with Power vacuum unit or Air jet vacuum unit. Be sure to activate Power vacuum unit of same diameter turret or Air jet vacuum unit of Z turret.
3.Use the punch mode "NEX tool punching mode" (M696). (M696 default set at 2.5mm as bottom position. So change the value to 1.0mm.) M500 (Bottom position 2.5mm) has a risk of tooling damage for 2.3mm material thickness.
