EG-AR Punch

Image	Profile	Group	Type	Tip Angle	Tip Width (mm)	Effective Height (mm)	Allow.Ton. (kN/m)

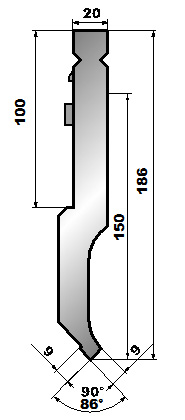

201 MT-10 Type HRC54±2	201 MT10	LS2	Standard	86°	9	150	1000
201 MT-10 TypeHRC54±2	201 MT10	LS2	Standard	90°	9	150	1000

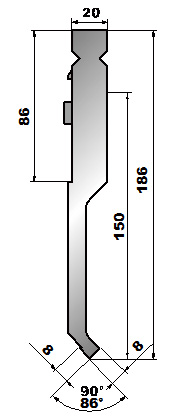

202 MT-28 Type HRC54±2	202 MT28	LS2	Sash	86°	8	150	300
202 MT-28 Type HRC54±2	202 MT28	LS2	Sash	90°	8	150	300

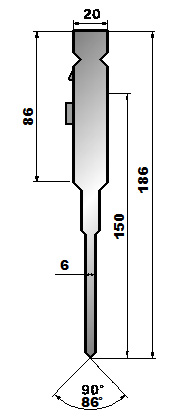

203 MT-30 Type HRC54±2	203 MT30	LS2	Straight	86°	6	150	500
203 MT-30 Type HRC54±2	203 MT30	LS2	Straight	90°	6	150	500

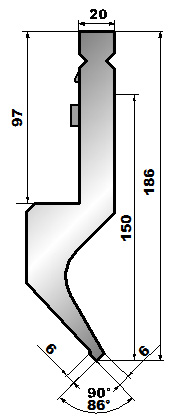

204 HRC54±2	204	LS2	Gooseneck	86°	6	150	500
204 HRC54±2	204	LS2	Gooseneck	90°	6	150	500

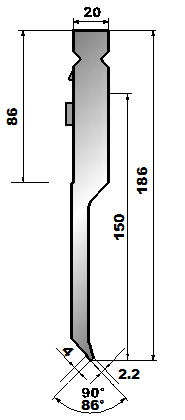

205 Robot HRC54±2	205 Robot	LS2	Robot	86°	4 / 2.2	150	300
205 Robot HRC54±2	205 Robot	LS2	Robot	90°	4 / 2.2	150	300

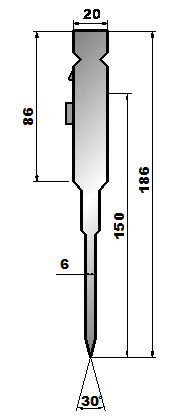

206 MT-36 Type HRC54±2	206 MT36	LS2	Acute	30°	6	150	500
206 MT-36 Type HRC54±2	206 MT36	LS2	Acute	30°	6	150	500

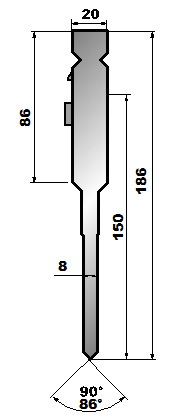

208 MT-30 Type HRC54±2	208 MT30	LS2	Straight	86°	8	150	1000
208 MT-30 Type HRC54±2	208 MT30	LS2	Straight	90°	8	150	1000
201 MT-10 Type HRC54±2	201 MT10	LS	Standard	86°	9	150	1000
201 MT-10 Type HRC54±2	201 MT10	LS	Standard	90°	9	150	1000
202 MT-28 Type HRC54±2	202 MT28	LS	Sash	86°	8	150	300
202 MT-28 Type HRC54±2	202 MT28	LS	Sash	90°	8	150	300
203 MT-30 Type HRC54±2	203 MT30	LS	Straight	86°	6	150	500
203 MT-30 Type HRC54±2	203 MT30	LS	Straight	90°	6	150	500
204 Gooseneck HRC54±2	204	LS	Gooseneck	86°	6	150	500
204 Gooseneck HRC54±2	204	LS	Gooseneck	90°	6	150	500
205 Robot HRC54±2	205 Robot	LS	Robot	86°	4 / 2.2	150	300
205 Robot HRC54±2	205 Robot	LS	Robot	90°	4 / 2.2	150	300
206 MT-36 Type HRC54±2	206 MT36	LS	Acute	30°	6	150	500
208 MT-30 Type HRC54±2	208 MT30	LS	Straight	86°	8	150	1000
208 MT-30 Type HRC54±2	208 MT30	LS	Straight	90°	8	150	1000
