Bending Products and Solutions

• AFH Tooling
• Modular Tooling
  • Punch
  • Die
  • Others
• EG-AR Tooling
  • Punch
  • Die
• Standard Tooling
  • Punch
  • Die
  • Others

• Value Added
  •
    Set up time reduced
    using heavy gauge 1V die
  •
    Lavor saving & set up time
    reduction for hemming work
  •
    Multi-purposed bending
    solution tool
  •
    Punch support for deep
    box products
• Scrach Prevention
  •
    Wing
    Bend
  •
    Polycarbonate
    Dies
  •
    Aluminum & stainless
    specific 2V dies
  •
    AX Tool
  •
    Polyurethane Dies
  •
    Urethane Sheet
  •
    Urethane Cap
  •
    Mark Protection Strip
  •
    Hard Chromium Plating
• Time Saving
  •
    AGRIP A/M
  •
    SGRIP
  •
    Hydraulic 1V Die Holder
  •
    Amada Modular
    Tooling System
  •
    AFH
    tool
  •
    Set up time reduced using
    heavy gauge 1V die
  •
    FEAT AFH Dieholder
  •
    Reversible 1V Die Holder
  •
    Wing Bend
  •
    Light-Weight Hemming
    Tool Ⅰ,Ⅱ
  •
    Light-Weight Hemming
    Tool Ⅲ
  •
    Super
    Multi II
  •
    fine offset
  •
    Qucik Change 2V Die
  •
    Reversible Acute 2V Dies
• Accuracy Support
  •
    Side Gauge for Sectionalized 1V Die
  •
    front table
    for 1V die
  •
    Side
    Gauge
  •
    Angle Variable Side Gaugeﾞ
• Long Life
  •
    ALP Burring punch No.Ⅲ
  •
    ALP Burring punch No.Ⅳ
  •
    ALP Sword Punch
  •
    AX Tool
  •
    AX1V Die
  •
    A.L.D. Tool
• Deep/Box bending
  •
    LBP Tool
  •
    Closing Punch
  •
    Punch Holder for Deep Bend
  •
    Narrow Distance Piece
  •
    Short Distance Piece
  •
    One-Touch Sub Holder
  •
    Sectionalized
    Distance Piece
• Management
  •
    M.T.S.298AFH
    For AFH Tools
  •
    M.T.S.298MD
    For Modular Tools
  •
    M.T.S.248ST
    For Standard Tools
  •
    M.T.S.486ST
    For Standard Tools
  •
    M.T.S.398MD
    For Modular Tool

Modular Tool Punch

* ( ) in allowable tonnage indicates tonnage for Ear.

Image	Profile	Type	V Angle	Tip Width(mm)	Effective Height(mm)	Allow.Ton. (kN/m)

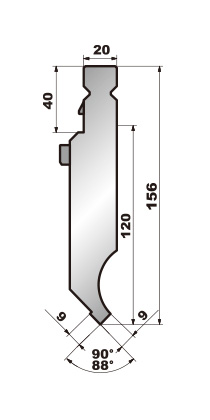

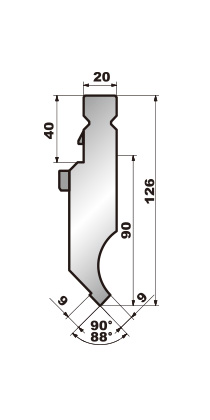

MT-10	MT10	Standard	88°,90°	9	90	1000(450)
MT-10	MT10	Standard	88°,90°	9	120	1000(450)

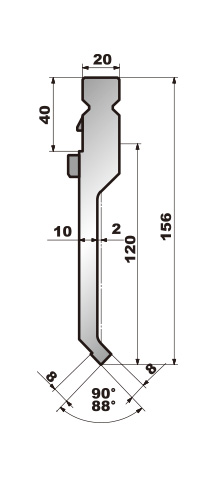

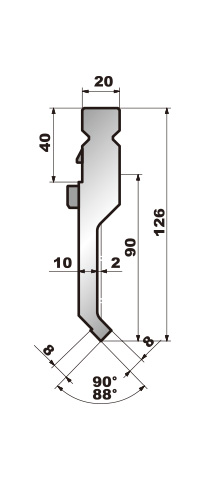

MT-28	MT28	Sash	88°,90°	8	90	300
MT-28	MT28	Sash	88°,90°	8	120	300

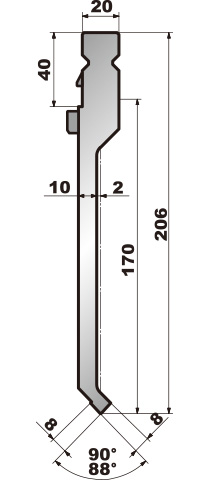

MT-28	MT28	Sash	88°,90°	8	170	300

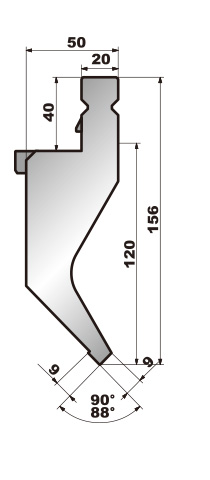

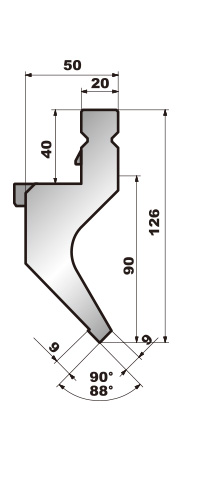

MT-40	MT40	Gooseneck	88°,90°	9	90	700(500)
MT-40	MT40	Gooseneck	88°,90°	9	120	700(500)

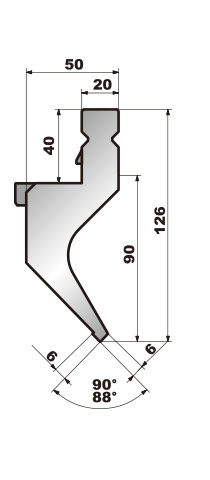

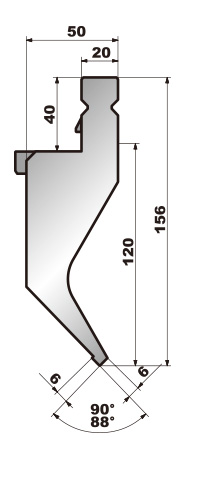

MT-46	MT46	Gooseneck	88°,90°	6	90	500(350)
MT-46	MT46	Gooseneck	88°,90°	6	120	500(350)

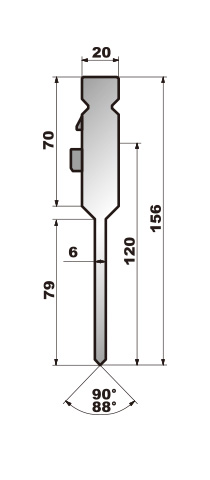

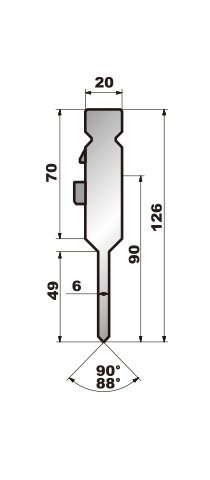

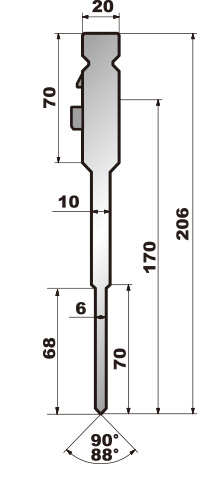

MT-30	MT30	Straight	88°,90°	6	90	500(190)
MT-30	MT30	Straight	88°,90°	6	120	500(190)
MT-30	MT30	Straight	88°,90°	6	170	500(190)

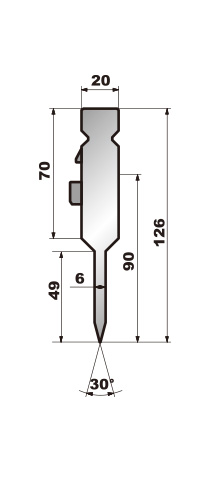

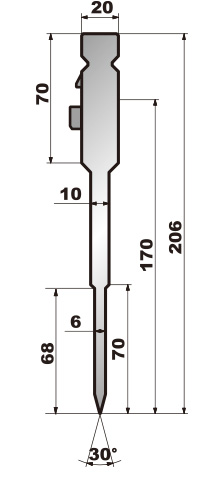

MT-36	MT36	Straight	30°	6	90	500(190)

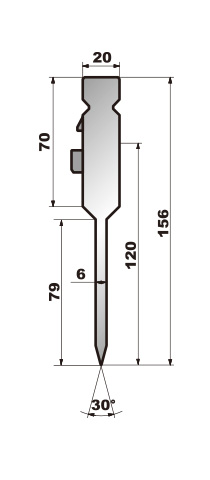

MT-36	MT36	Straight	30°	6	120	500(190)
MT-36	MT36	Straight	30°	6	170	500(190)

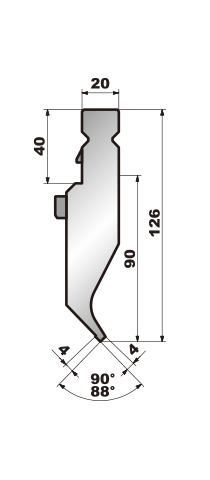

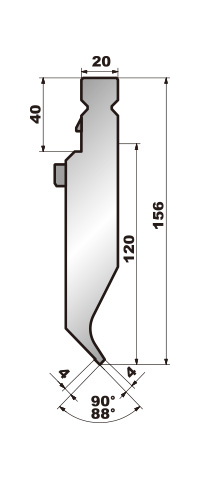

MT-14	MT14	Standard	88°,90°	4	90	200
MT-14	MT14	Standard	88°,90°	4	120	200

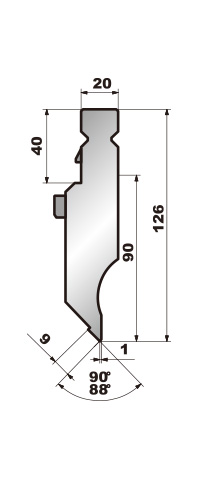

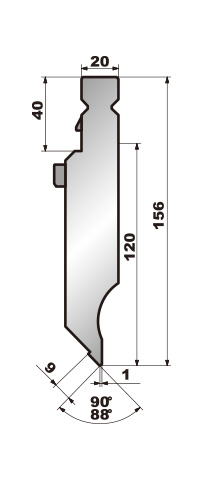

MT-12	MT12	Burring	88°,90°	9	90	800(450)
MT-12	MT12	Burring	88°,90°	9	120	800(450)
