Bending Products and Solutions
- Value Added
- Scrach Prevention
- Time Saving
-
AGRIP A/M -
SGRIP -
Hydraulic 1V Die Holder -
Amada Modular
Tooling System -
AFH
tool -
Set up time reduced using
heavy gauge 1V die -
FEAT AFH Dieholder -
Reversible 1V Die Holder -
Wing Bend -
Light-Weight Hemming
Tool Ⅰ,Ⅱ -
Light-Weight Hemming
Tool Ⅲ -
Super
Multi II -
fine offset -
Qucik Change 2V Die
Reversible Acute 2V Dies
-
- Accuracy Support
- Long Life
- Deep/Box bending
- Management
Heavy Spacer
SK10
| Tool Number Name/Spec. |
Tool Profile | Cat.No. | Allow.Ton. | Edge Width | HeightH | Weight (kg) |
Size | Price | |
|---|---|---|---|---|---|---|---|---|---|

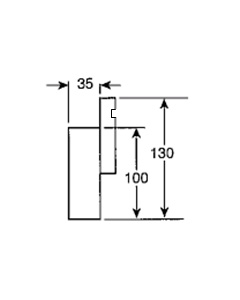

| 225 Heavy Spacer for Z I (Without Clamp Plate) HRC25±2 |
 |
225001 | ---- | ---- | 100 | L | End of Sales | ||
| 225002 | 15.0 | S | |||||||

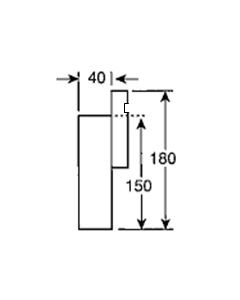

| 226 Heavy Spacer for Z I (Without Clamp Plate) HRC25±2 |
 |
226001 | ---- | ---- | 150 | L | End of Sales | ||
| 226002 | 23.1 | S | |||||||

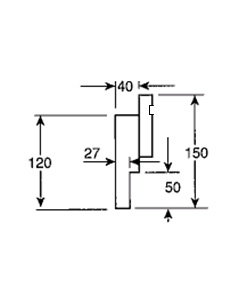

| 227 Heavy Spacer Z II Type (Without Clamp Plate) HRC25±2 |
 |
227001 | ---- | ---- | 120 | L | End of Sales | ||
| 227002 | 18.4 | S | |||||||
