V-CUT TOOL
Specification2
| Press Pattern Parameter | MOOO (Form Pattern) | ||
|---|---|---|---|
| Process Pattern (Select from 3 pattern) |
1. Straight |
2. Zigzag |
3. Pyramid |
| G Code | G202 (Start:X,Y / End:I, J / Tool Direction:T / C-axis Process Angle:C) |
||

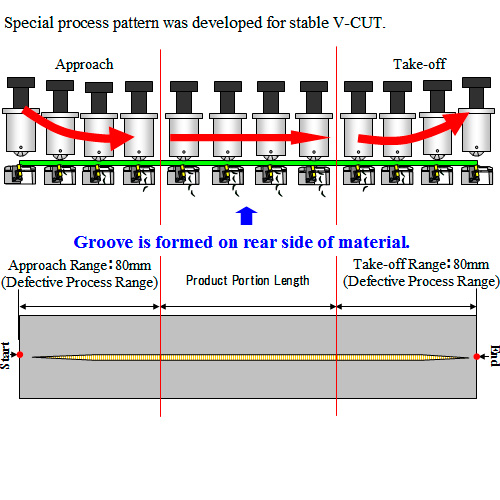

| Min V-CUT Process Length for Product Portion | Min. 140mm (Not include Approach / Take-off range) |
||
Max V-CUT Length |
SUS304 | Max2,500mm | |
| SPCC ・SECC ・SUS430 | Max800mm | ||
| Applicable Machine | EM-M2 ・ LC-C1NT ・ LC-C1AJ ・ LSE ・ EM(Z)-NT※2 ・AE |
||
| Applicable NC Control | AMNC-F（FS31ｉ）/AMNC3i | ||
| Program Software | AP100 Ver5.20.03 needs patch. Standard equipment since AP100 Ver5.20.04 | ||
| Recommended Bending Tool | AFHTool:Angle 86°, R0.6 (84°R0.2 Punch is also available. But bending accracy check is required.) |
||
※1 When performing V-CUT more than Max. length, it can expand by jointing multiple grooves.
※2 EM-ZR is not applicable.
