Bending Products and Solutions
EG-AR LS Sectionalized Tool
Description / Specification / Profile | Effective Height |
Edge Angle |
Edge R | Tip Width |
Allow.Ton. | Size | FEL# |
---|---|---|---|---|---|---|---|

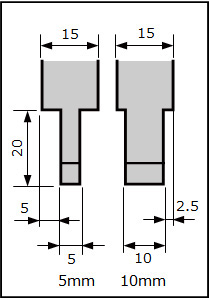

203 MT-30 Type (Straight) 6mm HRC54±2 Image below: Tab Profile: 5mm/10mm |
150 | 86° | 0.2 | 6mm | 500kN/m | Sect. | 203265E |
0.6 | 203665E | ||||||
90° | 0.2 | 203205E | |||||
0.6 | 203605E |
※About Sectionalized Length
