Bending Products and Solutions

• AFH Tooling
• Modular Tooling
  • Punch
  • Die
  • Others
• EG-AR Tooling
  • Punch
  • Die
• Standard Tooling
  • Punch
  • Die
  • Others

• Value Added
  •
    Set up time reduced
    using heavy gauge 1V die
  •
    Lavor saving & set up time
    reduction for hemming work
  •
    Multi-purposed bending
    solution tool
  •
    Punch support for deep
    box products
• Scrach Prevention
  •
    Wing
    Bend
  •
    Polycarbonate
    Dies
  •
    Aluminum & stainless
    specific 2V dies
  •
    AX Tool
  •
    Polyurethane Dies
  •
    Urethane Sheet
  •
    Urethane Cap
  •
    Mark Protection Strip
  •
    Hard Chromium Plating
• Time Saving
  •
    AGRIP A/M
  •
    SGRIP
  •
    Hydraulic 1V Die Holder
  •
    Amada Modular
    Tooling System
  •
    AFH
    tool
  •
    Set up time reduced using
    heavy gauge 1V die
  •
    FEAT AFH Dieholder
  •
    Reversible 1V Die Holder
  •
    Wing Bend
  •
    Light-Weight Hemming
    Tool Ⅰ,Ⅱ
  •
    Light-Weight Hemming
    Tool Ⅲ
  •
    Super
    Multi II
  •
    fine offset
  •
    Qucik Change 2V Die
  •
    Reversible Acute 2V Dies
• Accuracy Support
  •
    Side Gauge for Sectionalized 1V Die
  •
    front table
    for 1V die
  •
    Side
    Gauge
  •
    Angle Variable Side Gaugeﾞ
• Long Life
  •
    ALP Burring punch No.Ⅲ
  •
    ALP Burring punch No.Ⅳ
  •
    ALP Sword Punch
  •
    AX Tool
  •
    AX1V Die
  •
    A.L.D. Tool
• Deep/Box bending
  •
    LBP Tool
  •
    Closing Punch
  •
    Punch Holder for Deep Bend
  •
    Narrow Distance Piece
  •
    Short Distance Piece
  •
    One-Touch Sub Holder
  •
    Sectionalized
    Distance Piece
• Management
  •
    M.T.S.298AFH
    For AFH Tools
  •
    M.T.S.298MD
    For Modular Tools
  •
    M.T.S.248ST
    For Standard Tools
  •
    M.T.S.486ST
    For Standard Tools
  •
    M.T.S.398MD
    For Modular Tool

EG-AR Die

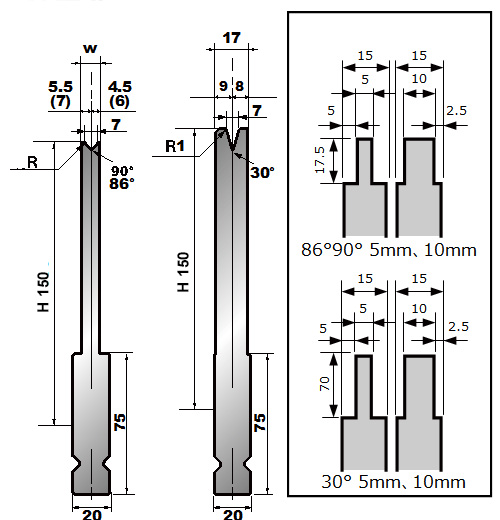

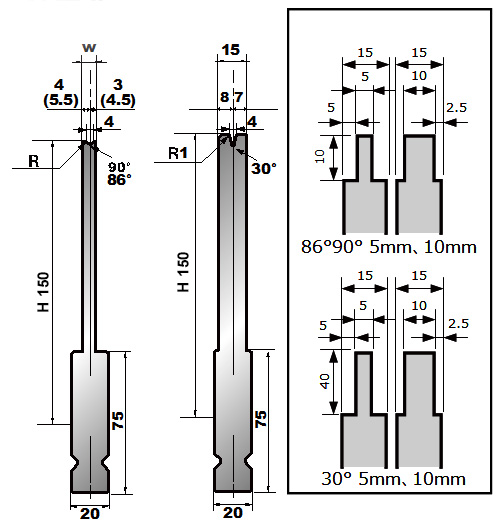

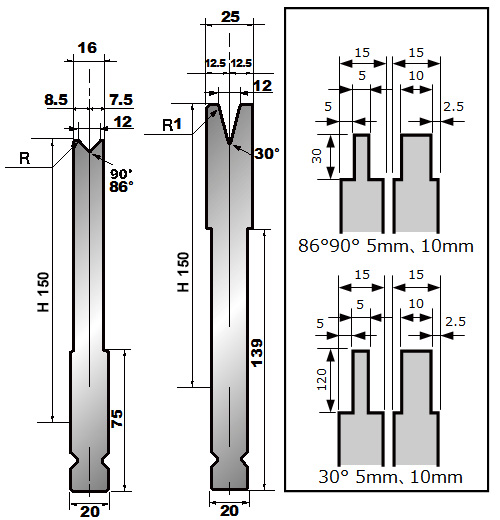

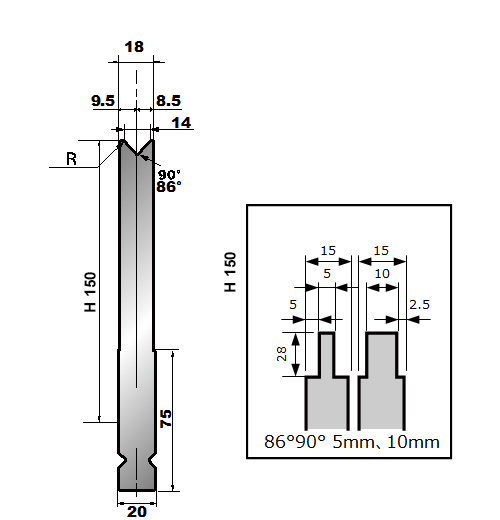

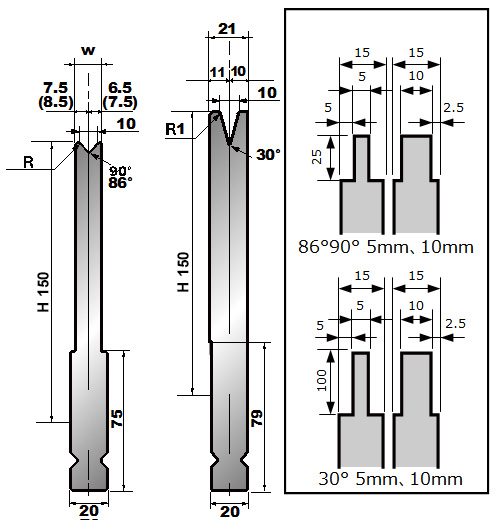

Image	Group	V Angle	V Width(mm)	Effective Height(mm)	Allow.Ton. (kN/m)
V=4 HRC54±2	LS2	86°	4	150	400
V=4 HRC54±2	LS2	90°	4	150	400, 1000
V=4 HRC54±2	LS2	30°	4	150	200
V=5 HRC54±2	LS2	86°	5	150	500
V=5 HRC54±2	LS2	90°	5	150	500, 1000
V=5 HRC54±2	LS2	30°	5	150	190
V=6 HRC54±2	LS2	86°	6	150	550
V=6 HRC54±2	LS2	90°	6	150	500, 1000
V=6 HRC54±2	LS2	30°	6	150	180
V=7 HRC54±2	LS2	86°	7	150	600
V=7 HRC54±2	LS2	90°	7	150	600, 1000
V=7 HRC54±2	LS2	30°	7	150	200
V=8 HRC54±2	LS2	86°	8	150	650
V=8 HRC54±2	LS2	90°	8	150	650, 1000
V=8 HRC54±2	LS2	30°	8	150	200
V=10 HRC54±2	LS2	86°	10	150	900
V=10 HRC54±2	LS2	90°	10	150	900, 1000
V=10 HRC54±2	LS2	30°	10	150	260
V=12 HRC54±2	LS2	86°	12	150	1000
V=12 HRC54±2	LS2	90°	12	150	1000
V=12 HRC54±2	LS2	30°	12	150	250
V=14 HRC54±2	LS2	86°	14	150	1000
V=14 HRC54±2	LS2	90°	14	150	1000
V=4 HRC54±2	LS	86°	4	150	400
V=4 HRC54±2	LS	90°	4	150	400, 1000
V=4 HRC54±2	LS	30°	4	150	200
V=5 HRC54±2	LS	86°	5	150	500
V=5 HRC54±2	LS	90°	5	150	500, 1000
V=5 HRC54±2	LS	30°	5	150	190
V=6 HRC54±2	LS	86°	6	150	550
V=6 HRC54±2	LS	90°	6	150	550, 1000
V=6 HRC54±2	LS	30°	6	150	180
V=7 HRC54±2	LS	86°	7	150	600
V=7 HRC54±2	LS	90°	7	150	600, 1000
V=7 HRC54±2	LS	30°	7	150	200
V=8 HRC54±2	LS	86°	8	150	650
V=8 HRC54±2	LS	90°	8	150	650, 1000
V=8 HRC54±2	LS	30°	8	150	200
V=10 HRC54±2	LS	86°	10	150	900
V=10 HRC54±2	LS	90°	10	150	900, 1000
V=10 HRC54±2	LS	30°	10	150	260
V=12 HRC54±2	LS	86°	12	150	1000
V=12 HRC54±2	LS	90°	12	150	1000
V=12 HRC54±2	LS	30°	12	150	250
V=14 HRC54±2	LS	86°	14	150	1000
V=14 HRC54±2	LS	90°	14	150	1000
