Bending Products and Solutions
EG-AR Tooling Sectionalized Length
LS2 Sectionalized Tool (LS2 Stocker)
Specification
# of Stocker | Max 10 stocker |
---|---|
Tool Type | (Total of punch/Die) 20 types |
Sectionalized Tool Size |
15㎜ x1,20㎜ x1,25㎜ x1,30㎜ x1,50㎜ x1 |
Tool Height | Punch・Die 150㎜ |

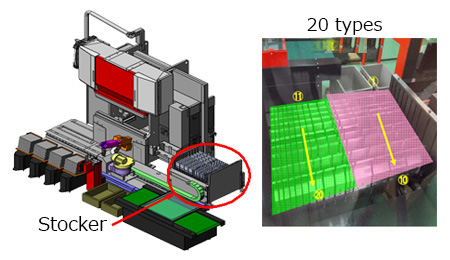

![LS2 Sectionalized Tooling (for LS2 Stocker)](../EG_AR/img/spec1.jpg)

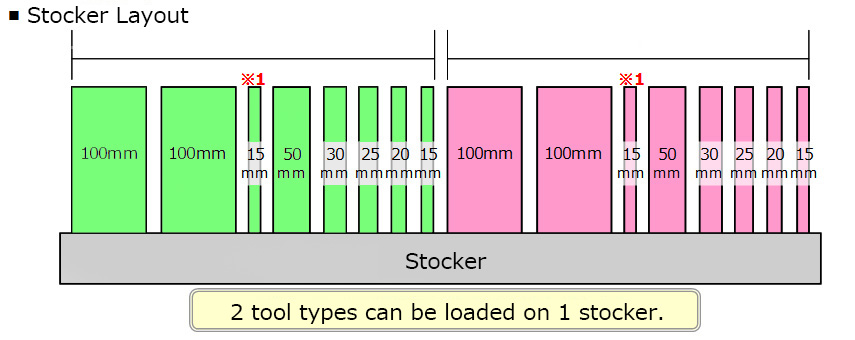

![LS2 Stocker Layout](../EG_AR/img/spec2.jpg)
LS Sectionalized Tool (LS Stocker)
Specification
# of Stcoker | Max 10 stocker |
---|---|
Tool Type | (Total of Punch/Die)10 types |
Sectionalized Tool Size |
15㎜x2, 20㎜x2, 25㎜x2, 30㎜x2, 50㎜x2 |
Tool Height | Punch・Die 150㎜ |

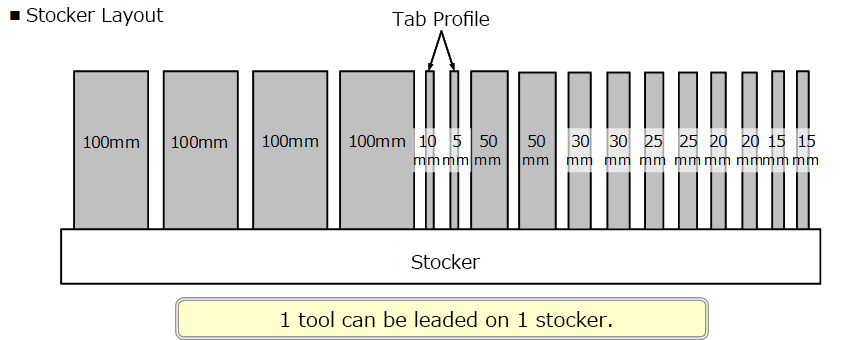

![LS Stcoker Layout](../EG_AR/img/spec3.jpg)
