Bending Products and Solutions

Modular Tool Die
Profile/Spec  Angle Shoulder
R
Effective
Height
Size V=25,32 V=40,50
Cat.No. Cat.No.
60° Heavy Duty Die
HRC65
Heavy Duty Diev25
Heavy Duty Diev32
Heavy Duty Diev40
Heavy Duty Diev50
Dedicated to TypeⅡ,Ⅲ
※without Safety Click
60° 4.0 80 415mm Special Special
300mm
200mm
D Sect.Set

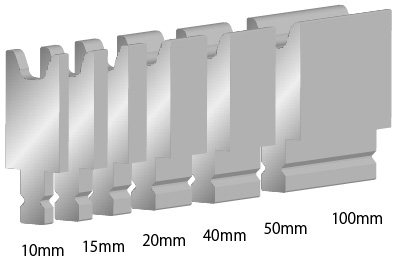

※D Type Sectionalized Length:10,15,20,40,50,100 Total 235mm
  Weight (415mm)
V25 12.9kg
V32 13.5kg
V40 15.1kg
V50 16.2kg
Allow.Ton.:1000kN/m
モジュラーDSectionalized
