V-Groove Spares for Double-Deck Hemming Die
SK10
Tool Number
Name/Spec.
Tool Profile V
Angle
V Width W
Width
Cat.No. Allow.Ton. Height
H
Weight
(kg)
Size
For 10469
V-Groove Spare Only
HRC48±2
V-Groove Spare Only for 10469 30° 6 46 801491 Acute Bend
V6:450kN/m
V8:350kN/m

Flattening
650kN/m
23 ---- L
801492 ---- S
For 10409
V-Groove Spare Only
HRC48±2
V-Groove Spare Only for 10409 8 801391 23 ---- L
801392 ---- S
Old-Type 1046
V-Groove Spare Only
HRC48±2
V-Groove Spare Only for old type 1046 30° 6 46 801401 Acute Bend
V6:450kN/m
V8:350kN/m

Flattening
650kN/m
23 ---- L
801402 ---- S(Right)
801412 ---- S(Left)
Old-Type 104
V-Groove Spare Only
HRC48±2
旧104用 8 801301 23 ---- L
801302 ---- S(Right)
801312 ---- S(Left)
※L:835mm S:415mm

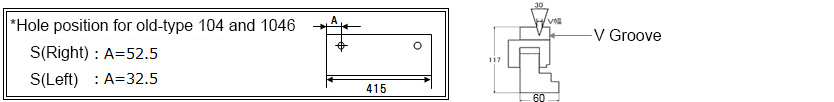

※Blue codes are items excluded from inventory. Caution V-Groove Spares for Double-Deck Hemming Die
