Bending Products and Solutions

Sectionalized Distance Piece
SK10,11
Tool Number
Name/Spec.
Tool Profile Cat.No. Allow.Ton. Edge Width HeightH Weight
(kg)
Size
Sectionalized
Distance Piece

for Standard
Z II Type
Without Wedge
(SK10)
Sectionalized Distance Piece Standard用
Z II Type 971000 1000kN/m ---- 120
(70)
---- Z2
Sectionalized
Distance Piece

for One-Touch Tooling
Z II Type
Without Wedge
(SK11)
Sectionalized Distance Piece One-Touch Tooling用

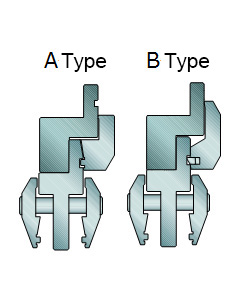

Z II Type W9710A
W9710B
---- 120
(70)
---- Z2
Sectionalized
Distance Piece

Sub HolderZ II Type
Without Wedge
Width150mm
(SK10)
Sectionalized Distance Piece Sub HolderZ II Type
972000 1000kN/m ---- 50 ---- Z2
Sectionalized Length (20,30,40,60,80,100 Total 330mm)
