Burring Punch
SK10,11

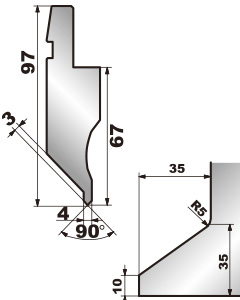

| Tool Number Name/Spec. |
Tool Profile | V Angle | Edge R | Cat.No. | Allow.Ton. | Edge Width | Weight (kg) |
Size |
|---|---|---|---|---|---|---|---|---|
| 0168 No.1Type HRC47±2 |
 |
90° | R0.2 | 016801 | 400kN/m | 4mm | 10.5 | L |
| 016802 | 5.2 | S | ||||||
| 1478 (No.0168Sect.) HRC47±2 |
147801 | 200kN/m | 9.3 | Sect. |
※L:835mm S:415mm
