Bending Products and Solutions
Straight Punch
SK10,11
Tool Number Name/Spec. |
Tool Profile | V Angle | Edge R | Cat.No. | Allow.Ton. | Edge Width | Weight (kg) |
Size |
---|---|---|---|---|---|---|---|---|

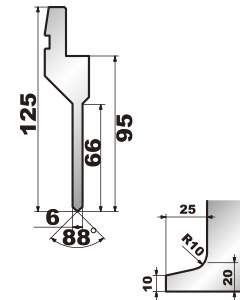

109 HRC47±2 |
88° | R0.2 | 109001 | 500kN/m | 6mm | 9.7 | L | |
109002 | 4.8 | S | ||||||
R0.6 | 109061 | 9.7 | L | |||||
109062 | 4.8 | S | ||||||
107 (No.109Sect.) HRC47±2 |
R0.2 | 107001 | 120kN/m | 9.7 | Sect. | |||
R0.6 | 107061 |
※L:835mm S:415mm
