Standard Radius Rulers
SK10,11
| Tool Number Name/Spec. |
Tool Profile | Edge R | 直径 | Cat.No. | Height１ | Height2 | Weight (kg) |
Size |
|---|---|---|---|---|---|---|---|---|

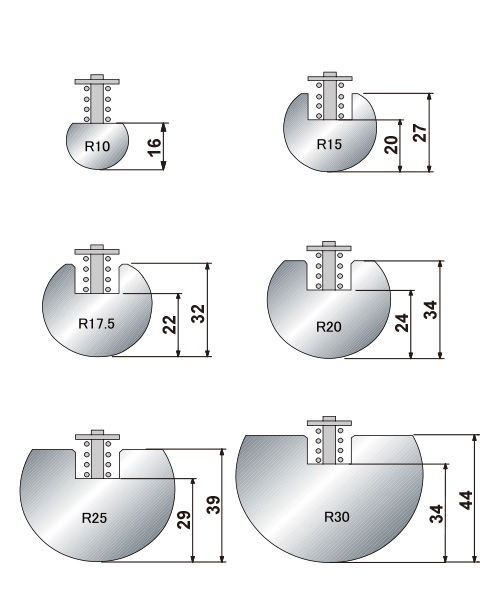

| 17 Radius Rulers (SK10) |
 |
R10 | 20 | 017101 | 16 | ---- | 1.8 | L |
| 017102 | 0.9 | S | ||||||
| R15 | 30 | 017151 | 20 | 27 | 2.8 | L | ||
| 017152 | 1.4 | S | ||||||
| R17.5 | 35 | 017171 | 22 | 32 | 5.2 | L | ||
| 017172 | 2.6 | S | ||||||
| R20 | 40 | 017201 | 24 | 34 | 6.9 | L | ||
| 017202 | 3.4 | S | ||||||
| R25 | 50 | 017251 | 29 | 39 | 9.9 | L | ||
| 017252 | 4.9 | S | ||||||
| R30 | 60 | 017301 | 34 | 44 | 13.6 | L | ||
| 017302 | 6.8 | S |
※L:835mm S:415mm
