Sash Punch
SK10,11
| Tool Number Name/Spec. |

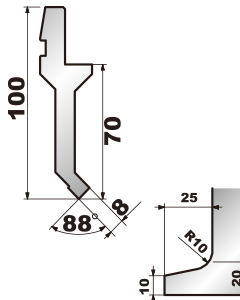

Tool Profile | V Angle | Edge R | Cat.No. | Allow.Ton. | Edge Width | Weight (kg) |
Size |
|---|---|---|---|---|---|---|---|---|
| 200 HRC47±2 |
 |
88° | R0.2 | 200001 | 300kN/m | 8mm | 8.0 | L |
| 200002 | 4.0 | S | ||||||
| R0.6 | 200061 | 8.0 | L | |||||
| 200062 | 4.0 | S | ||||||
| 20080 (No.200Sect.) HRC47±2 |
R0.2 | 200801 | 150kN/m | 7.2 | Sect. | |||
| R0.6 | 200861 |
※L:835mm S:415mm
