Bending Products and Solutions

Radius Punch for Heavy Gauge
SK10,11
Tool Number
Name/Spec.
Tool Profile V Angle Edge R Cat.No. Allow.Ton. Edge Width Weight
(kg)
Size
3
Radius Punch

HRC47±2

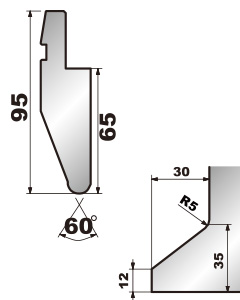

3_138  60° R6.0 003001 1000kN/m ---- 15.1 L
003002 7.5 S
138
(No.3Sect.)
HRC47±2
138001 ---- 14.6 Sect.
※A Type Sectionalized Length (10,15,20,40,50,100(Right Ear),100(Left Ear),200,300 Total 835mm)
※L:835mm S:415mm
Standard
