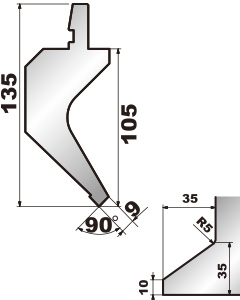

Standard Gooseneck Punch
SK10,11
| Tool Number Name/Spec. |
Tool Profile | V Angle | Edge R | Cat.No. | Allow.Ton. | Edge Width | Weight (kg) |
Size |
|---|---|---|---|---|---|---|---|---|
| 46 HRC47±2 |
 |
90° | R0.2 | 046001 | 500kN/m | 9mm | 22.6 | L |
| 046002 | 11.2 | S | ||||||
| 51 (No.46Sect.) HRC47±2 |
051001 | 450kN/m | 21.9 | Sect. |
※L:835mm S:415mm
