Bending Products and Solutions

Sash Punch
SK10,11

※Discontinued items will be supported as special-order tool.
Please contact us with questions about the prices and the delivery time.

Tool Number
Name/Spec.
Tool Profile V Angle Edge R Cat.No. Allow.Ton. Edge Width Weight
(kg)
Size Price

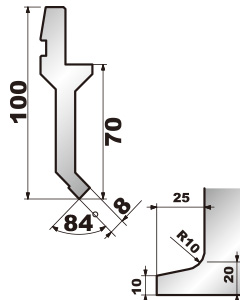

20406
HRC47±2
20406_20486 84° R0.6 204061 300kN/m 8mm 8.0 L End of Sales
204062 4.0 S
20486
(No.20406
Sect.)
HRC47±2
204861 150kN/m 7.2 Sect.

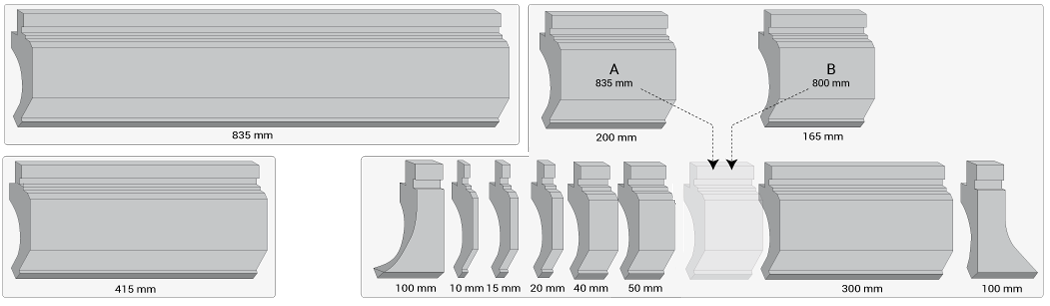

※B Type Sectionalized Length (10,15,20,40,50,100(Right Ear),100(Left Ear),165,300 Total 800mm)
※L:835mm S:415mm
Standard
