  2. Off-Set Horizontal Type

Off-Set Horizontal Type

SPCC : 0.6 - 2.3mm SUS : 0.6 - 1.5mm

Small off-set (equal to the material thickness ) is created by one operation. Operation becomes easy because no bend-up/down occurs. But flange lengths are limited.

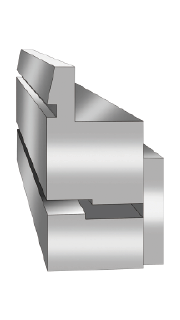

Work Sample Work Profile Tool Image
Off-Set Horizontal Type Off-Set Horizontal Type Off-Set Horizontal Type Tool

Tool Spec.

Mat. SPCC, SUS, AL
Thickness  mm 0.6 - 2.3(SUS less than 1.5)
Off-set (H)  mm t - t x 3

Required Tonnage

Required bending tonnage /per m(SPCC) unit kN/m
Thickness  mm 0.6 0.8 1 1.2 1.6 2 2.3
Required Ton kN/m 300 400 500 600 800 1000 1000

* Multiply x 1.5 to above figure for stainless steel, and x 0.6 to Al A5052.

Necessary Tonnage Calculation

SPCC Tonnage /m above x1.0 x product length(mm)÷1000
SUS Tonnage /m above x1.5 x product length(mm)÷1000
AL Tonnage /m above x0.6 x product length(mm)÷1000

Cautions

Marring

Marring appears on both sides.

Off-Set Horizontal Type Slide Marring

Check Machine Capacity

Be sure that required tonnage gained by equation above does not exceed the machine capacity.

Product Accuracy

Product height accuracy becomes ± 0.2mm. Angle becomes obtuse120° - 150°).
