  2. R-Bend Air-bend type

R-Bend Air-Bend Type

SPCC : 0.6 - 2.3mm SUS : 0.6 - 2.0mm

This application is suitable for relatively smaller R-Bending. As various- size can be made by only punch replacement, this application provides versatility & cost-performance. On the other hand, this application can be affected by thickness or quality variation of the material. Another application is recommended for high-precision requirement.

Work Sample Work Profile Tool Image

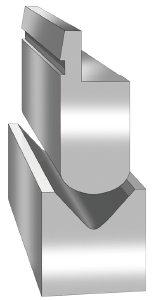

R-Bend Air-Bend Type R-Bend Air-Bend Type 2 R-Bend Air-Bend Type Tool

Tool Spec.

Mat. SPCC, SUS, AL
Thickness mm 0.6 - 2.3
Angle 70° more
Outer radius mm R5 - R30

Required Tonnage

Required bending tonnage /per m(SPCC)unit kN/m
Thickness  mm 0.6 0.8 1 1.2 1.6 2 2.3
Required Ton kN/m 20 30 50 70 130 200 270

Necessary Tonnage Calculation

SPCC Tonnage /m above x1.0 x product length(mm)÷1000
SUS Tonnage /m above x1.5 x product length(mm)÷1000
AL Tonnage /m above x0.6 x product length(mm)÷1000

Cautions

Marring

Marring appears if the work is not covered by protective sheet. Therefore the marring countermeasure has to be taken by such as urethane sheet and mark-free tape.

R-Bend Air-Bend Type Slide MarringSide Marring

Check Machine Capacity

Be sure that required tonnage gained by equation above does not exceed the machine capacity.

Selection judgment

Guide line : Product inner radius ÷ thickness t ≤30 by air-Bending.
Example: Required product inner radius 30mm material thickness 0.8mm Guide line 30÷0.8 =37.5 exceeds 30.
Therefore Urethane type R-bend or Counter type R-Bend is recommended.

Product Accuracy

Accuracy of product R dimension R± 5% Example: Product R=30 mm 30x0.05 =1.5 Therefore R30±1.5mm
