1V Dies
|
FELNo.
|

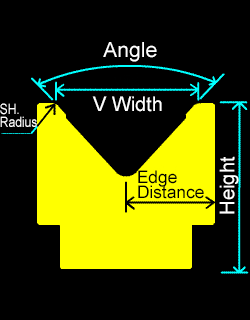

Product |
Angle |
V Width |
SH. R |
Die Edge Distance |
Height |
Notes |
Image |
1 |
03500 |
1V Dies |
85 |
32 |
4 |
30 |
60 |
|
|
2 |
03600 |
85 |
40 |
4 |
30 |
60 |
|
3 |
03700 |
85 |
50 |
4 |
30 |
60 |
|
4 |
03800 |
85 |
63 |
5 |
40 |
75 |
|
5 |
03900 |
80 |
125 |
9 |
77 |
123 |
|
6 |
01360 |
85 |
80 |
6 |
47.5 |
95 |
|
7 |
01860 |
85 |
100 |
7 |
60 |
110 |
|
8 |
01400 |
80 |
160 |
11 |
92.5 |
140 |
|
