Short-Length Punch Holders

Download

The following data is contained.

  FELNo. Product Height CATNo. Image

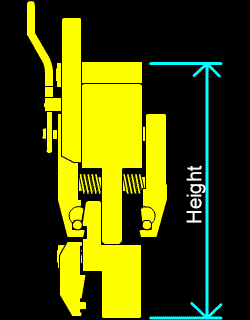

1 901613 O/T Punch Holder Z II
(Dual Type / with Lever)

Short-Length Punch Holder ZⅠ
(One-Touch)
170 W9200A
2 903613 O/T Punch Holder Z II
(with Lever / No Rear Clamp Plate)

Short-Length Punch Holder Z
(One-Touch)
170 W9200A

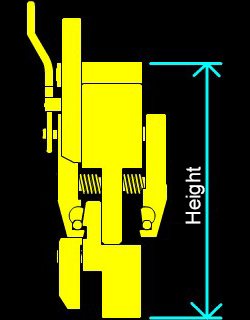

3 901611 O/T Punch Holder Z II
(Dual Type / with Lever)

Short-Length Punch Holder Z I (Standard)
170 W9200C

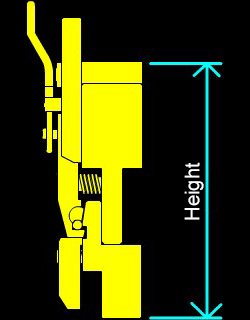

4 903611 O/T Punch Holder Z II
( with Lever / No Rear Clamp Plate)

Short-Length Punch Holder Z I
(Standard)
170 W9200C

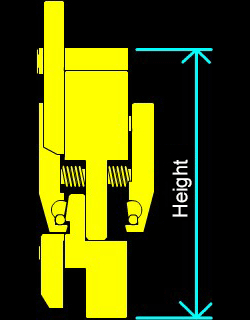

5 911611 O/T Punch Holder Z II
(Dual Type / No Lever)

Short-Length Punch Holder Z I
(Standard)
170 W9200C

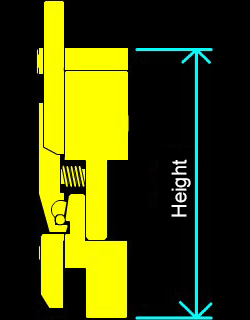

6 913611 O/T Punch Holder Z II
(No Lever / No Rear Clamp Plate)

Short-Length Punch Holder Z I
(Standard)
170 W9200C

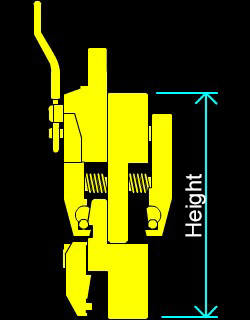

7 701613 O/T Punch Holder Z I (Dual Type)

Short-Length Punch Holder Z I
(One-Touch)
150 W9200A

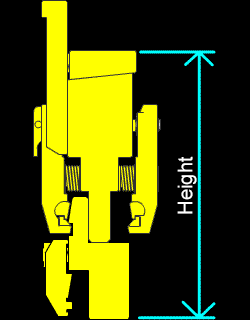

8

511613

CS Clamp(Dual Type)

Short-Length Punch Holder Z I
(One-Touch)
170 W9200A

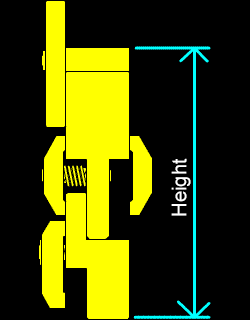

9 111613 Standard Holders Z II (Dual Type)

Short-Length Punch Holder Z I
(Standard)
170 920000

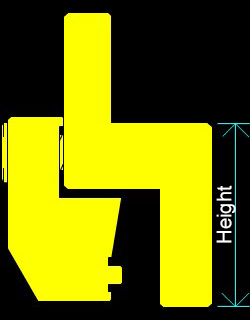

10 600003 Short-Length Punch Holder ZⅡ
(One-Touch)
50 W9210B
