Wing Bend Dies
This FEL data is not for V-bending. ( Value "D" can not be calculated.)
Therefore, please download the data after reading the following notice carefully.
>Use "Direct Data" mode. ("3D Data"/"Shape Data"/"Angle Data" are Not Available.)
*Direct Data: Input values "L" and "D" on "Run Display" or "Prog Display" through from "Bend Process Display/Tool Select Display"
| Not possible to calculate D value (Except V bend type tool) | ||||
| Radius Bend | Wing Bend Dies | Offset Tool | Hemming | Wing Bend |
 |
 |
 |
 |
 |
The following data is contained.

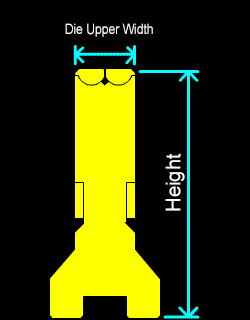

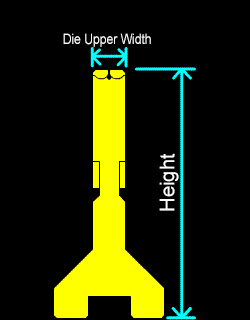

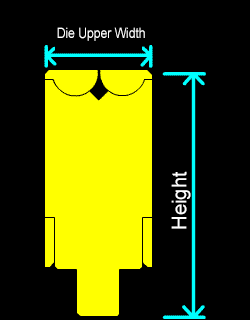

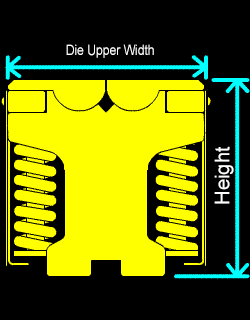

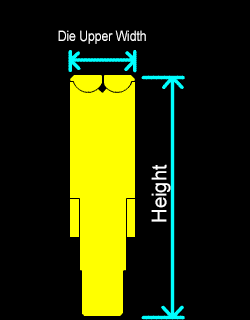

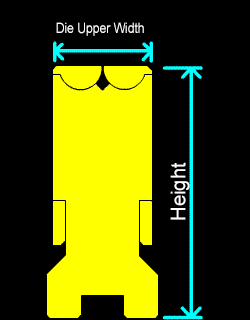

| FELNo. | Product | Die Upper Width | Height | Notes | Image | |
| 1 | 1200 | WB-120A | 12 | 80 | Equivalent to V6 Reversible 1V Die Holder is required. |
 |
| 2 | 2300 | WB-230A | 22 | 80 | Equivalent to V10 Reversible 1V Die Holder is required. |
 |
| 3 | 3500 | WB-350A | 35 | 80 | Equivalent to V15 Reversible 1V Die Holder is required. |
 |
| 4 | 120 | WB-120 | 12 | 90 | Equivalent to V6 Required dedicated rail |
 |
| 5 | 230 | WB-230 | 22 | 90 | Equivalent to V10 Required dedicated rail |
 |
| 6 | 350 | WB-350 | 35 | 90 | Equivalent to V15 Required dedicated rail |
 |
| 7 | 650 | WB-650 | 102 | 100 | Equivalent to V30 Required dedicated rail |
 |

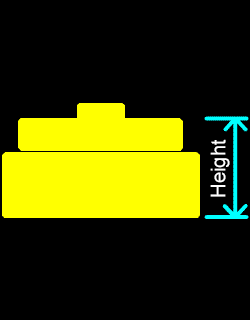

| 8 | 00012 | Dedicated Rail | 30 | Please register FEL data as dedicated rail. |  |
