Reversible 2V Dies
|
FELNo. |
Product |

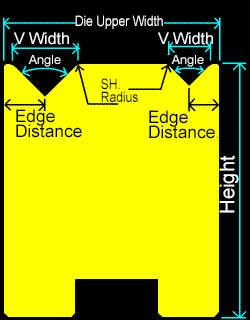

Angle |
V Width |
SH. R |
Edge Distance |
Height |
CATNo. |
Image |
1 |
50180 |
Reversible 2V Dies |
90 |
4 |
0.4 |
3.5 |
46 |
50190 |
|
7 |
0.4 |
5 |
2 |
50186 |
88 |
4 |
0.4 |
3.5 |
45.5 |
50196 |
7 |
0.4 |
5 |
3 |
50190 |
90 |
4 |
0.4 |
3.5 |
46 |
50180 |
7 |
0.4 |
5 |
4 |
50196 |
88 |
4 |
0.4 |
3.5 |
45.5 |
50186 |
7 |
0.4 |
5 |
5 |
50780 |
90 |
5 |
0.4 |
4 |
46 |
50790 |
9 |
0.6 |
6 |
6 |
50786 |
88 |
5 |
0.4 |
4 |
45.5 |
50796 |
9 |
0.6 |
6 |
7 |
50790 |
90 |
5 |
0.4 |
4 |
46 |
50780 |
9 |
0.6 |
6 |
8 |
50796 |
88 |
5 |
0.4 |
4 |
45.5 |
50786 |
9 |
0.6 |
6 |
9 |
50280 |
90 |
6 |
0.4 |
4.5 |
46 |
50290 |
10 |
0.6 |
6.5 |
10 |
50286 |
88 |
6 |
0.4 |
4.5 |
45.5 |
50296 |
10 |
0.6 |
6.5 |
11 |
50290 |
90 |
6 |
0.4 |
4.5 |
46 |
50280 |
10 |
0.6 |
6.5 |
12 |
50296 |
88 |
6 |
0.4 |
4.5 |
45.5 |
50286 |
10 |
0.6 |
6.5 |
13 |
51190 |
90 |
6 |
1.5 |
6 |
46 |
|
10 |
2.5 |
8 |
14 |
50380 |
90 |
8 |
0.5 |
5.5 |
46 |
50390 |
12 |
0.8 |
7.5 |
15 |
50386 |
88 |
8 |
0.5 |
5.5 |
45.5 |
50396 |
12 |
0.8 |
7.5 |
16 |
50390 |
90 |
8 |
0.5 |
5.5 |
46 |
50380 |
12 |
0.8 |
7.5 |
17 |
50396 |
88 |
8 |
0.5 |
5.5 |
45.5 |
50386 |
12 |
0.8 |
7.5 |
18 |
50480 |
88 |
14 |
0.5 |
8.5 |
46 |
50490 |
18 |
0.5 |
10.5 |
19 |
50490 |
88 |
14 |
0.5 |
8.5 |
46 |
50480 |
18 |
0.5 |
10.5 |
20 |
50580 |
88 |
12 |
0.5 |
7.5 |
46 |
50590 |
20 |
0.5 |
12 |
21 |
50590 |
88 |
12 |
0.5 |
7.5 |
46 |
50580 |
20 |
0.5 |
12 |
22 |
51490 |
88 |
12 |
3 |
10 |
46 |
|
20 |
4 |
14 |
23 |
50680 |
88 |
16 |
0.8 |
9.5 |
46 |
50690 |
25 |
0.8 |
14.5 |
24 |
50690 |
88 |
16 |
0.8 |
9.5 |
46 |
50680 |
25 |
0.8 |
14.5 |
25 |
50337 |

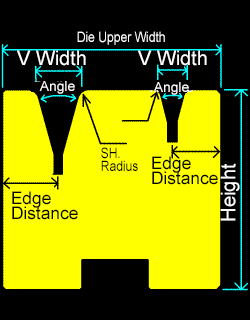

Reversible Acute 2V Dies |
30 |
8 |
1.0 |
12.5 |
40 |
|
|
12 |
1.0 |
14 |
26 |
33706 |
30 |
6 |
1.5 |
11 |
46 |
33746 |
10 |
2.0 |
13 |
27 |
33746 |
30 |
6 |
1.5 |
11 |
46 |
33706 |
10 |
2.0 |
13 |
▲
FEL Data
