One-Touch 2V Dies / Dies | FEL Data

One-Touch 2V Dies

※ Rail for One-Touch 2V Dies included.

	FELNo.	Product	Angle	V Width	SH R	Die Edge Distance	Height	Image
1	121001	Reversible One-Touch 2V Dies + Reversible 2V Die Rail	90	4	0.4	3.5	38
1	121001		90	7	0.4	5	38
2	121061		88	4	0.4	3.5	37.5
2	121061		88	7	0.6	5	37.5
3	122001		90	5	0.4	4	38
3	122001		90	9	0.6	6	38
4	122061		88	5	0.4	4	37.5
4	122061		88	9	0.6	6	37.5
5	123001		90	6	0.4	4.5	38
5	123001		90	10	0.6	6.5	38
6	123061		88	6	0.4	4.5	37.5
6	123061		88	10	0.6	6.5	37.5
7	124001		90	8	0.5	5.5	38
7	124001		90	12	0.8	7.5	38
8	124061		88	8	0.5	5.5	37.5
8	124061		88	12	0.8	7.5	37.5

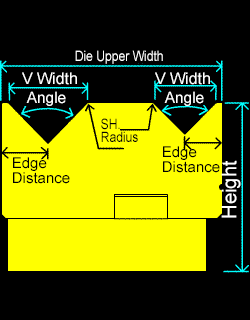

9	125001		88	14	0.5	8.5	38
9	125001		88	18	0.5	10.5	38
10	126001		88	12	0.5	7.5	38
10	126001		88	20	0.5	12	38
11	127001		88	16	0.8	9.5	38
11	127001		88	25	0.8	14.5	38
12	128001		88	16	3.0	14.5	47
12	128001		88	25	5.0	18.5	47
13	311001		90	6	1.5	6	38
13	311001		90	10	2.5	10	38
14	311061		88	6	1.5	6	37.5
14	311061		88	10	2.5	10	37.5
15	314001		88	12	3.0	10	38
15	314001		88	20	4.0	15	38

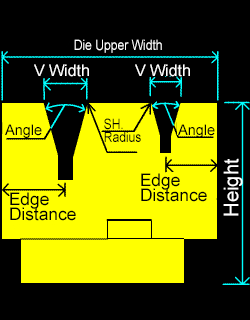

16	337001	Reversible One-Touch 2V Dies (Acute) + Reversible 2V Die Rail	30	8	1.0	14.5	50
16	337001		30	12	1.0	18	50
