Middle Height Punches
The following data is contained.
FELNo. | Product | Angle | Radius | CATNo. | Image | |

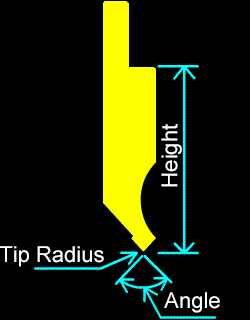

1 | 00502 | No.4 (88°) H=85 |
88 | 0.2 | 00902 | |
2 | 00506 | 88 | 0.6 | 00906 | ||
3 | 00508 | 88 | 0.8 | 00908 | ||
4 | 00515 | 88 | 1.5 | 00915 | ||
5 | 00530 | 88 | 3.0 | 00930 | ||
6 | 00902 | 88 | 0.2 | 00502 | ||
7 | 00906 | 88 | 0.6 | 00506 | ||
8 | 00908 | 88 | 0.8 | 00508 | ||
9 | 00915 | 88 | 1.5 | 00515 | ||
10 | 00930 | 88 | 3.0 | 00530 | ||
11 | 00602 | No.16 (90°) H=85 |
90 | 0.2 | 00702 | |
12 | 00606 | 90 | 0.6 | 00706 | ||
13 | 00608 | 90 | 0.8 | 00708 | ||
14 | 00615 | 90 | 1.5 | 00715 | ||
15 | 00630 | 90 | 3.0 | 00730 | ||
16 | 00702 | 90 | 0.2 | 00602 | ||
17 | 00706 | 90 | 0.6 | 00606 | ||
18 | 00708 | 90 | 0.8 | 00608 | ||
19 | 00715 | 90 | 1.5 | 00615 | ||
20 | 00730 | 90 | 3.0 | 00630 | ||

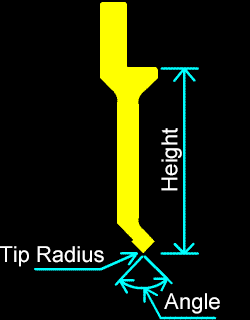

21 | 01002 | No.200 (88°) H=85 |
88 | 0.2 | 01082 | |
22 | 01006 | 88 | 0.6 | 01086 | ||
23 | 01082 | 88 | 0.2 | 01002 | ||
24 | 01086 | 88 | 0.6 | 01006 | ||
25 | 01100 | No.201 (90°) H=85 |
90 | 0.2 | 01182 | |
26 | 01106 | 90 | 0.6 | 01186 | ||
27 | 01182 | 90 | 0.2 | 01100 | ||
28 | 01186 | 90 | 0.6 | 01106 | ||

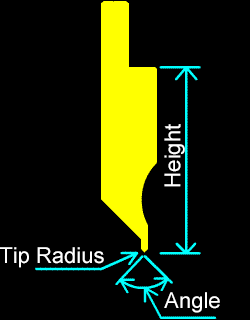

29 | 00582 | Burring Punch No. 1 H=85 |
88 | 0.2 | Sectionalized No.00982 | |
30 | 00586 | 88 | 0.6 | Sectionalized No.00986 | ||
31 | 00682 | 90 | 0.2 | Sectionalized No.00782 | ||

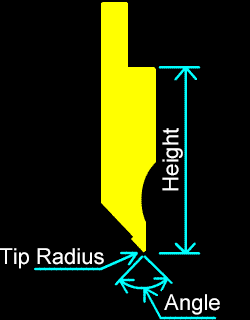

32 | 00592 | Burring Punch No. 2 H=85 |
88 | 0.2 | Sectionalized No.00992 | |
33 | 00596 | 88 | 0.6 | Sectionalized No.00996 | ||
34 | 00692 | 90 | 0.2 | Sectionalized No.00792 | ||

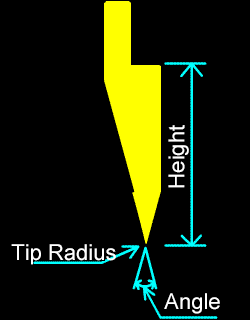

35 | 02300 | No.103 H=85 |
30 | 0.52 | Sectionalized No.02380 |
