FEL Data
Punch Holders
Standard Holders
Standard Holders
The following data is contained.
FELNo.
Product
Height
1

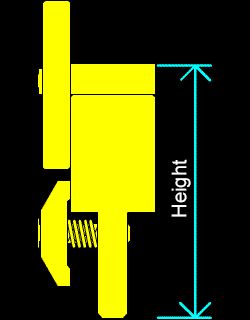

110000
Standard Punch Holder ZII
(No Rear Clamp Plate)
120
2

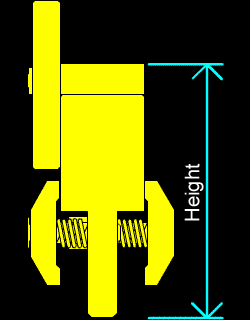

220000
Standard Punch Holder Z II
(Dual Type)
120
3

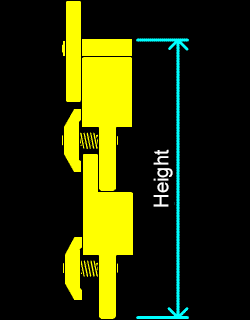

00009
Standard Punch Holder Double
ZII (No Rear Clamp Plate)
Z I (No Rear Clamp Plate)
220
