Acute Punches

Download

The following data is contained.

  FELNo. Product Angle Radius CATNo. Image

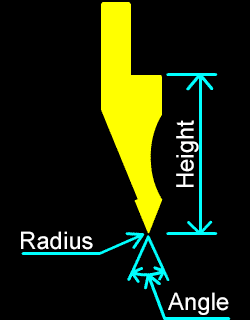

1 00800 Acute Punch
H=67
45 0.37 04900
2 04900 Acute
H=67
45 0.37 00800

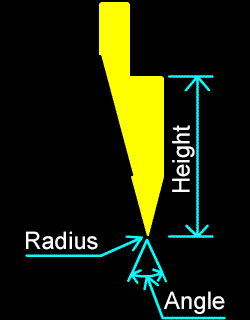

3 10300 Acute
H=67
30 0.52 10380
4 10380 Acute
H=67
30 0.52 10300

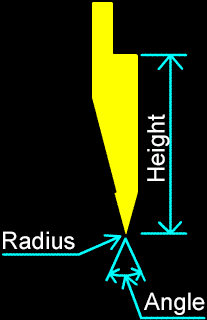

5 21000 Acute
H=104
30 0.65 21080
6 21080 Acute
H=104
30 0.65 21000

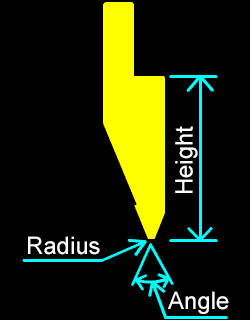

7 21500 Acute
H=67
45 3.0
