Strong Dies (Angle 80°45°30°) (Order Tool)

Download

  FELNo. Product Angle V
Width
SH.
R
Die Edge Distance Height CATNo. Length Image

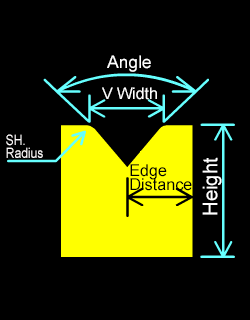

1 935002
1V 80 32
4
30
60
S35002
S:415

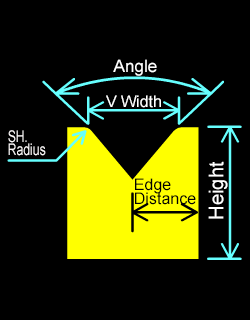

2 936002
1V 80 40
4
30
60
S36002
S:415

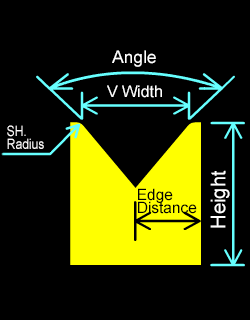

3 937002
1V 80 50
4
30
65
S37002
S:415

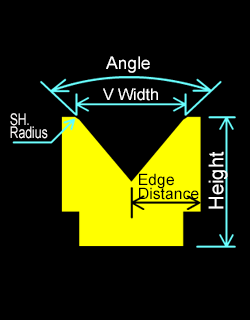

4 938002
1V 80 63
5
40
75
S38002
S:415

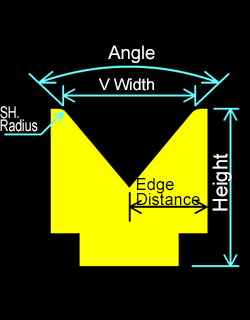

5 913002
1V 80 80
6
47.5
95
S13002
S:415

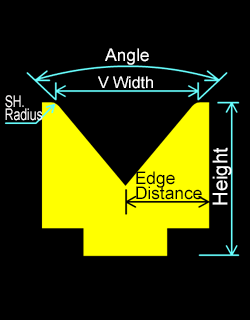

6 918002
1V 80 100
7
60
110
S18002
S:415

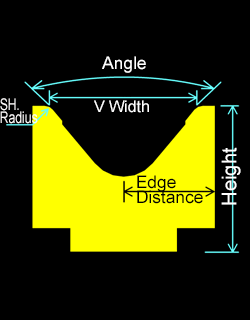

7 939002
1V 80 125
9
77
123
S39002
S:415

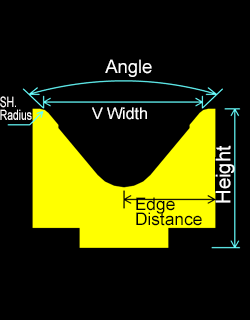

8 914002
1V 80 160
11
92.5
140
S14002
S:415

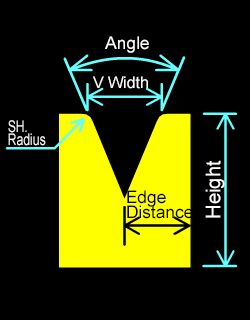

9 940002
Acute 30 18
3
30
60
S40002
S:415

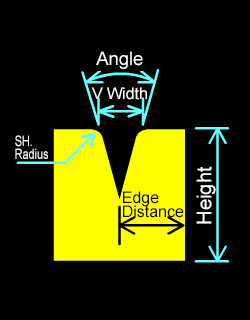

10 941002
Acute 30 25
4
30
75
S41002
S:415

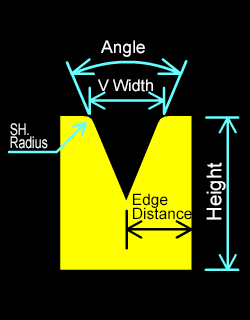

11 942002
Acute 45 32
5
30
70
S42002
S:415

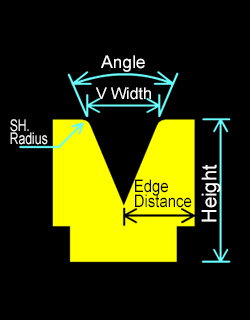

12 943002 Acute 45 40 5 40 80 S43002 S:415
