- AFHPunch H120 Angle 88°
Special Tool Menu Book Listed Items (Standard & AFH )
- Standard Punches
- AFH Punches
(Standard Punch FEL Data) |
The following data is contained.
FELNo. | Product | Angle | Radius | Image | |

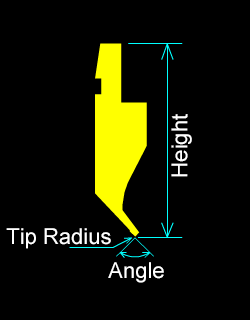

1A1 | 991121 | Standard H=67 |
88 | 0.2 | |
991125 | 88 | 0.6 | |||
991111 | 90 | 0.2 | |||

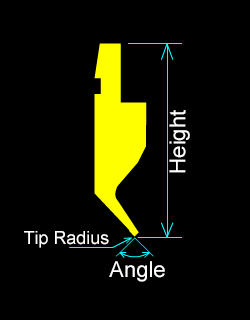

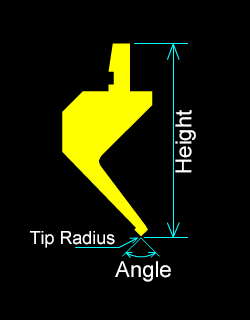

1A2 | 991221 | Standard H=67 |
88 | 0.2 | |
991225 | 88 | 0.6 | |||
991211 | 90 | 0.2 | |||
1A3 | 991321 | Gooseneck H=90 |
88 | 0.2 | |
991325 | 88 | 0.6 | |||
991311 | 90 | 0.2 | |||

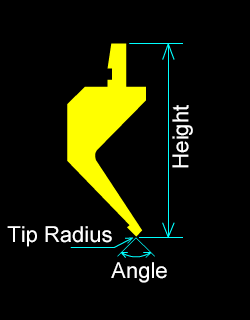

1A4 | 991421 | Gooseneck H=105 |
88 | 0.2 | |
991425 | 88 | 0.6 | |||
991411 | 90 | 0.2 | |||

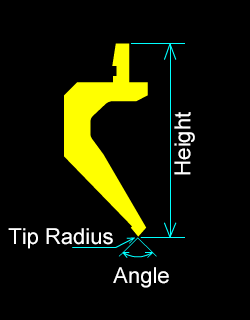

1A5 | 991521 | Gooseneck H=120 |
88 | 0.2 | |
991525 | 88 | 0.6 | |||
991511 | 90 | 0.2 | |||

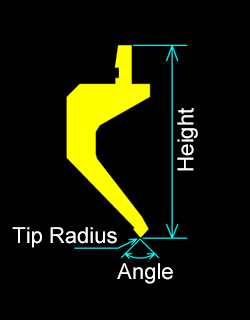

1A6 | 991621 | Gooseneck H=120 |
88 | 0.2 | |
991625 | 88 | 0.6 | |||
991611 | 90 | 0.2 | |||

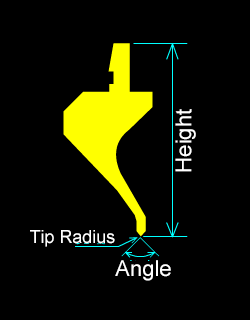

1A7 | 991721 | Gooseneck H=90 |
88 | 0.2 | |
991725 | 88 | 0.6 | |||
991711 | 90 | 0.2 | |||

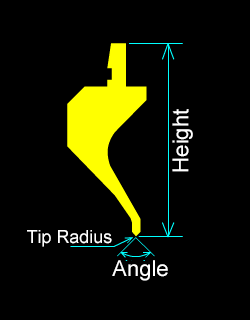

1A8 | 991821 | Gooseneck H=105 |
88 | 0.2 | |
991825 | 88 | 0.6 | |||
991811 | 90 | 0.2 | |||

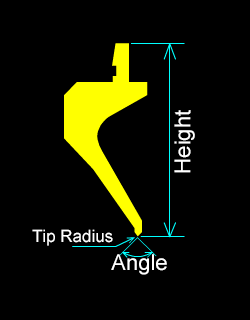

1A9 | 991921 | Gooseneck H=120 |
88 | 0.2 | |
991925 | 88 | 0.6 | |||
991911 | 90 | 0.2 | |||

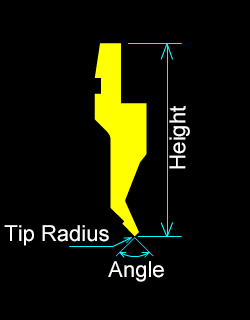

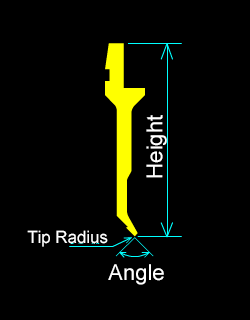

1AA | 992021 | Standard H=67 |
88 | 0.2 | |
992025 | 88 | 0.6 | |||
992011 | 90 | 0.2 | |||
1AB | 992121 | Sash H=100 |
88 | 0.2 | |
992125 | 88 | 0.6 | |||
992111 | 90 | 0.2 | |||

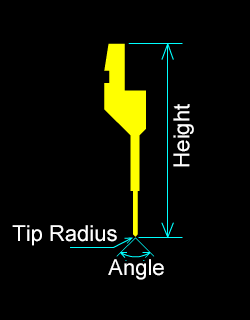

1AC | 992221 | Sword H=95 |
88 | 0.2 | |
992225 | 88 | 0.6 | |||
992211 | 90 | 0.2 |
(AFHPunch FEL Data) |
The following data is contained.
FELNo. | Product | Angle | Radius | Image | |

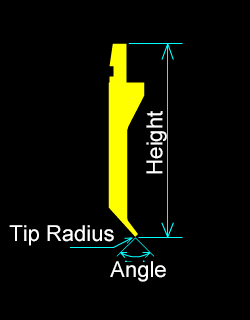

7A1 | 997131 | AFH Standard H=120 |
86 | 0.2 | |
997135 | 86 | 0.6 | |||
997121 | 88 | 0.2 | |||
997125 | 88 | 0.6 | |||
997111 | 90 | 0.2 | |||
7A2 | 997231 | AFH Standard H=120 |
86 | 0.2 | |
997235 | 86 | 0.6 | |||
997221 | 88 | 0.2 | |||
997225 | 88 | 0.6 | |||
997211 | 90 | 0.2 | |||

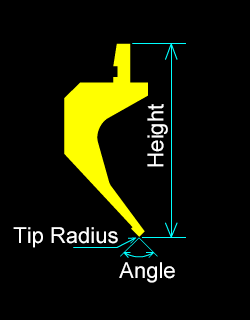

7A3 | 997331 | AFH Gooseneck H=120 |
86 | 0.2 | |
997335 | 86 | 0.6 | |||
997321 | 88 | 0.2 | |||
997325 | 88 | 0.6 | |||
997311 | 90 | 0.2 | |||

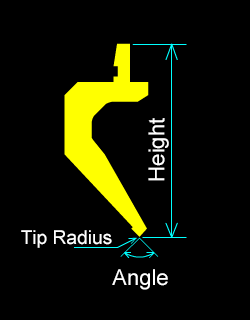

7A4 | 997431 | AFH Gooseneck H=120 |
86 | 0.2 | |
997435 | 86 | 0.6 | |||
997421 | 88 | 0.2 | |||
997425 | 88 | 0.6 | |||
997411 | 90 | 0.2 | |||

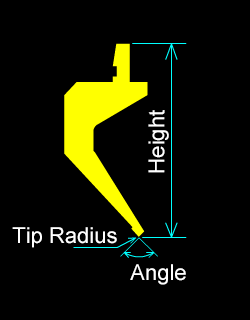

7A5 | 997531 | AFH Gooseneck H=120 |
86 | 0.2 | |
997535 | 86 | 0.6 | |||
997521 | 88 | 0.2 | |||
997525 | 88 | 0.6 | |||
997511 | 90 | 0.2 | |||

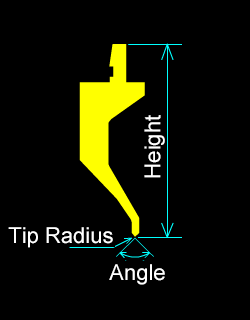

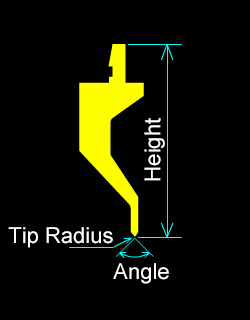

7A6 | 997631 | AFH Gooseneck H=120 |
86 | 0.2 | |
997635 | 86 | 0.6 | |||
997621 | 88 | 0.2 | |||
997625 | 88 | 0.6 | |||
997611 | 90 | 0.2 | |||
7A7 | 997731 | AFH Gooseneck H=120 |
86 | 0.2 | |
997735 | 86 | 0.6 | |||
997721 | 88 | 0.2 | |||
997725 | 88 | 0.6 | |||
997711 | 90 | 0.2 | |||
7A8 | 997831 | AFH Sash H=120 |
86 | 0.2 | |
997835 | 86 | 0.6 | |||
997821 | 88 | 0.2 | |||
997825 | 88 | 0.6 | |||
997811 | 90 | 0.2 | |||

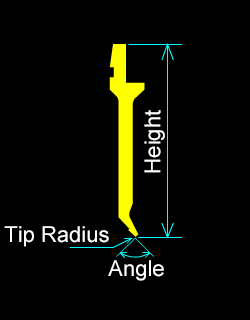

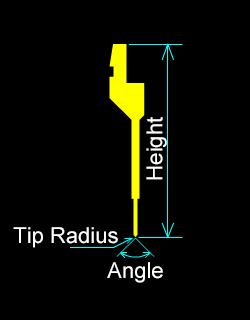

7A9 | 997931 | AFH Sash H=120 |
86 | 0.2 | |
997935 | 86 | 0.6 | |||
997921 | 88 | 0.2 | |||
997925 | 88 | 0.6 | |||
997911 | 90 | 0.2 | |||
7AA | 998031 | AFH Sword H=120 |
86 | 0.2 | |
998035 | 86 | 0.6 | |||
998021 | 88 | 0.2 | |||
998025 | 88 | 0.6 | |||
998011 | 90 | 0.2 |
