Narrow Bend Dies

Download

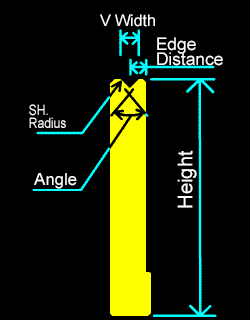

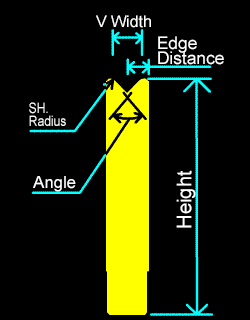

  FELNo. Product Angle V Width SH. R Die Edge Distance Height Length Image
1 00151

Modular

90 4 0.5 4.5 79 115
2 00152 90 4.5 0.6 4.5 79.25 115.25
3 00153 90 5 0.6 5 79.5 115.5
4 00154 90 5.5 0.7 5 79.75 115.75
5 00155 90 6 0.8 5.5 80 116
6 00156 90 6.5 0.8 5.5 80.25 116.25
7 00157 90 7 0.9 6 80.5 116.5
8 00158 90 7.5 0.9 6 80.75 116.75
9 00159 90 8 1.0 6.5 81 117
10 00160 90 8.5 1.1 6.5 81.25 117.25
11 00161 90 9 1.1 7 81.5 117.5
12 00162 90 9.5 1.2 7 81.75 117.75
13 00163 90 10 1.3 7.5 82 118
14 00251

Sectionalized
1V Dies

90 4 0.5 4.5 79
15 00252 90 4.5 0.6 4.5 79.25
16 00253 90 5 0.6 5 79.5
17 00254 90 5.5 0.7 5 79.75
18 00255 90 6 0.8 5.5 80
19 00256 90 6.5 0.8 5.5 80.25
20 00257 90 7 0.9 6 80.5
21 00258 90 7.5 0.9 6 80.75
22 00259 90 8 1.0 6.5 81
23 00260 90 8.5 1.1 6.5 81.25
24 00261 90 9 1.1 7 81.5
25 00262 90 9.5 1.2 7 81.75
26 00263 90 10 1.3 7.5 82
