Standard 2V Dies

Download

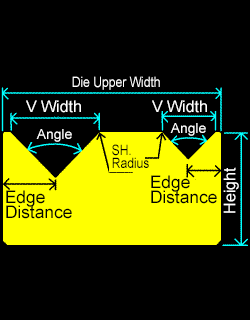

  FELNo. Product Angle V Width SH. R Edge Distance Height Image
1 12100 Standard
2V Dies
90 4 0.4 3.5 26
7 0.4 5.0
2 12106 88 4 0.4 3.5 25.5
7 0.4 5
3 12200 90 5 0.4 4 26
9 0.6 6
4 12206 88 5 0.4 4 25.5
9 0.6 6
5 12300 90 6 0.4 4.5 26
10 0.6 6.5
6 12306 88 6 0.4 4.5 25.5
10 0.6 6.5
7 12400 90 8 0.5 5.5 26
12 0.8 7.5
8 12406 88 8 0.5 5.5 25.5
12 0.8 7.5
9 12500 88 14 0.5 8.5 26
18 0.5 10.5
10 12590 90 14 0.5 8.5 26
18 0.5 10.5
11 12600 88 12 0.5 7.5 26
20 0.5 12
12 12690 90 12 0.5 7.5 26
20 0.5 12
13 12700 88 16 0.8 9.5 26
25 0.8 14.5
14 12790 90 16 0.8 9.5 26
25 0.8 14.5
